Input Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

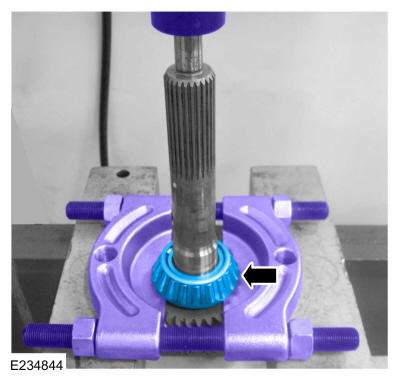

  1. Using a press and a bearing separator, remove the input shaft bearing. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press
GFD719597Courtesy of FORD MOTOR COMPANY
