Extension Housing: Assembly
WARNING: This page is about a different variant/trim than selected.

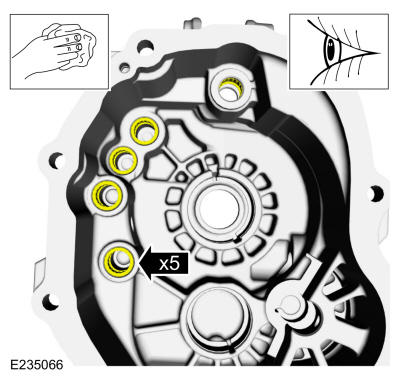

- Clean and inspect the shift shaft bearings for damage. If damage is found, install a new extension housing.

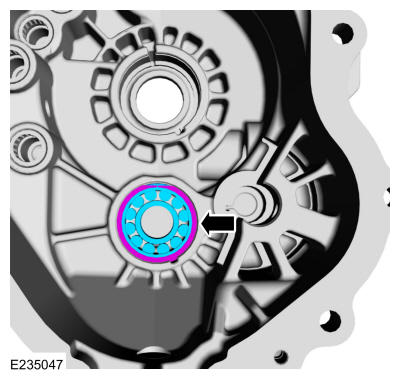

- Install the countershaft bearing and the retaining ring.

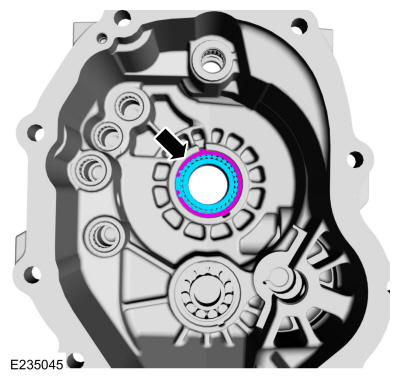

- Install the output shaft bearing and the retaining ring.

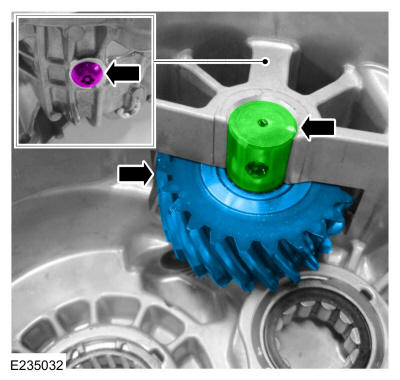

- Install the reverse idler gear, reverse gear pin and install the bolt.
Torque: 106 lb.in (12 Nm)

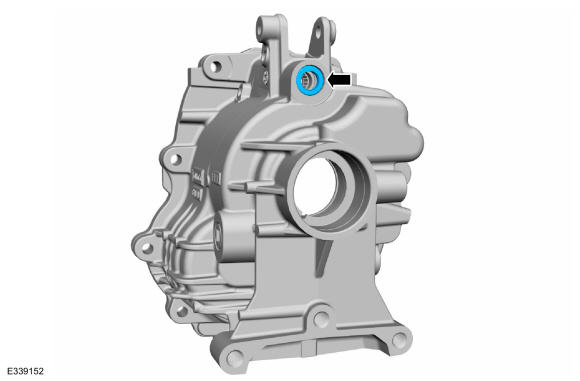

- Install the manual shaft seal.
- Install the tone wheel.

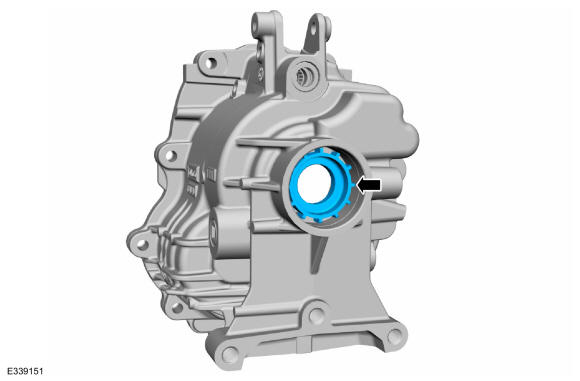

- Install the output shaft seal.

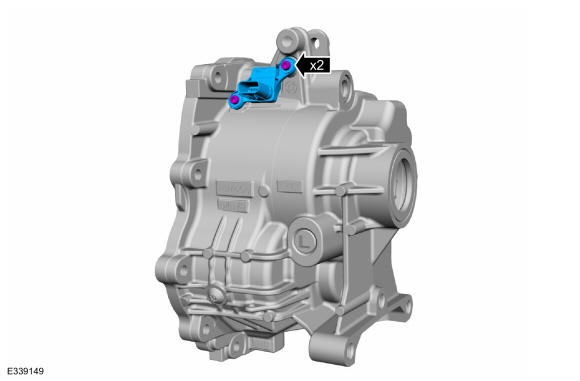

- Install the gear shift position sensor and the bolts.
Torque: 71 lb.in (8 Nm)
