Clutch Housing: Disassembly

WARNING: This page is about a different variant/trim than selected.

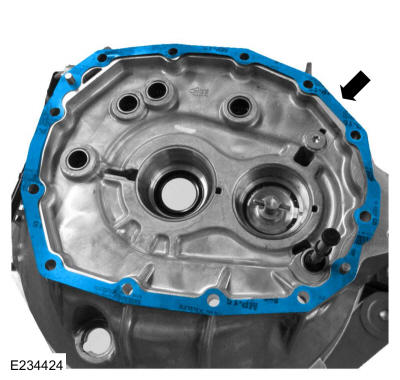

  1. Remove the clutch housing gasket.
    GFD719577Courtesy of FORD MOTOR COMPANY

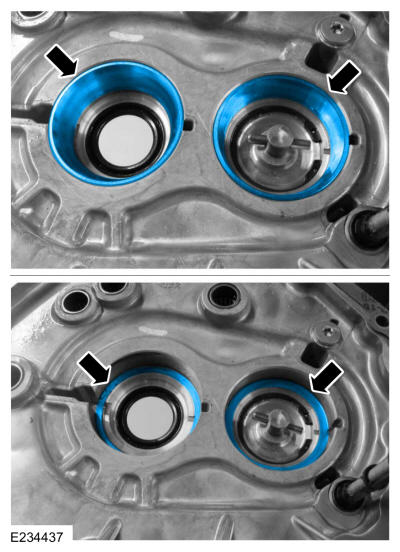

  2. Remove the front input shaft and the countershaft bearing races and the shims.
    GFD719578Courtesy of FORD MOTOR COMPANY

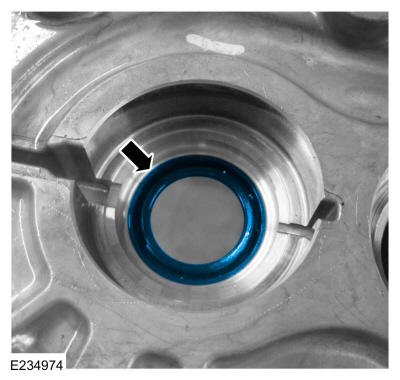

  3. Remove the input shaft seal.
    GFD719579Courtesy of FORD MOTOR COMPANY
  4. Remove the oil pump pick-up tube.
    GFD719580Courtesy of FORD MOTOR COMPANY
  5. Remove the oil pressure regulator.
    GFD719581Courtesy of FORD MOTOR COMPANY
  6. Remove the snap ring and the oil pump.
GFD719582Courtesy of FORD MOTOR COMPANY
