Clutch Housing: Assembly
WARNING: This page is about a different variant/trim than selected.

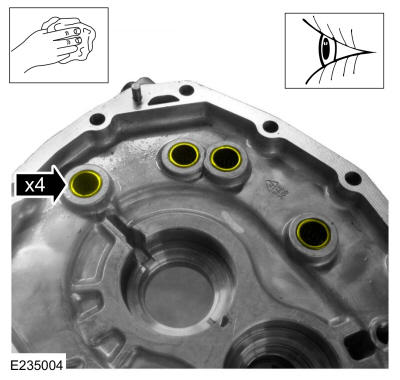

- Clean and inspect the shift shaft bearings for damage. If damage is found, install a new clutch housing.

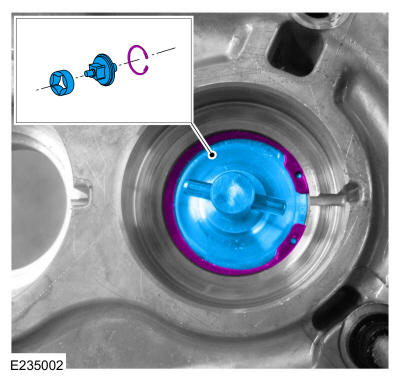

- Install the oil pump and the snap ring.

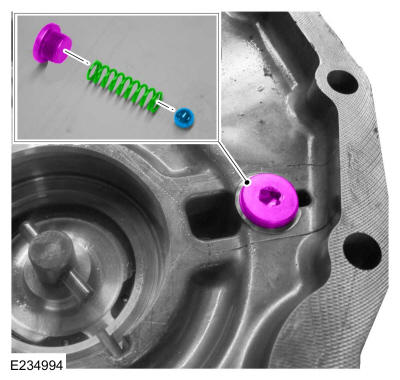

- Install the oil pressure regulator.
Torque: 21 lb.ft (28 Nm)

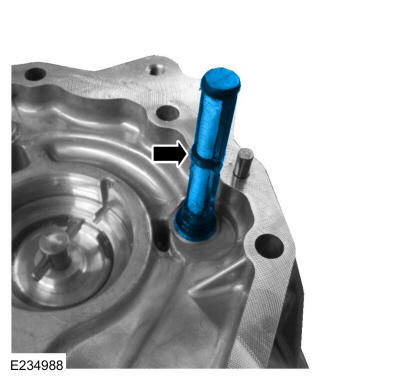

- Install the oil pump pick-up tube.

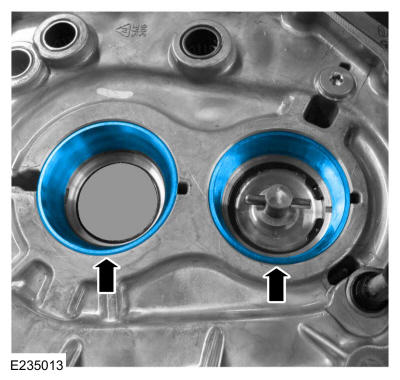

- Install the input shaft bearing cup and the countershaft bearing cup. Do not install the shims at this time.
