Sixth Gear Powerflow
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

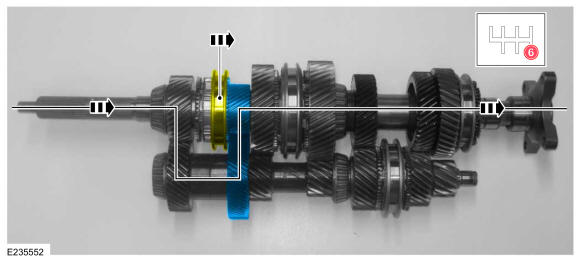

In 6th gear, the shift shaft assembly slides the 5-6 synchronizer sleeve back onto 6th gear to lock it to the output shaft. Torque is transferred from the input shaft to the countershaft through the countershaft drive gear and from the countershaft to the output shaft through 6th gear.
