Reverse Powerflow
WARNING: This page is about a different variant/trim than selected.

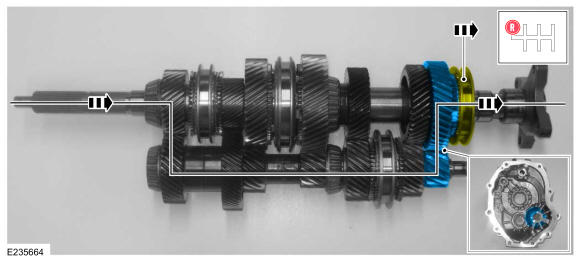

In reverse, the shift shaft assembly slides the reverse synchronizer sleeve back onto reverse gear to lock it to the output shaft. Torque is transferred from the input shaft to the countershaft through the countershaft drive gear and from the countershaft to the output shaft through the reverse gear and reverse idler gear to rotate the output shaft in the opposite direction.
