Fourth Gear Powerflow
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

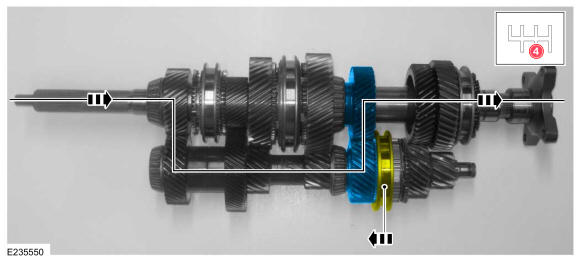

In 4th gear, the shift shaft assembly slides the 3-4 synchronizer sleeve forward onto 4th gear to lock it to the output shaft. Torque is transferred from the input shaft to the countershaft through the countershaft drive gear and from the countershaft to the output shaft through 4th gear.
