First Gear Powerflow

WARNING: This page is about a different variant/trim than selected.

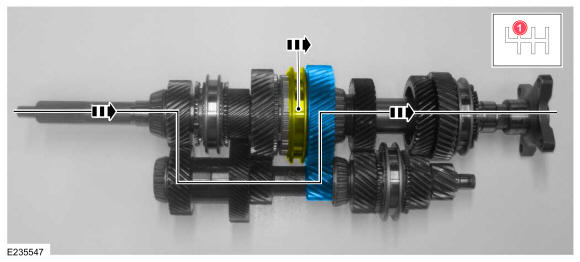

GFD719467Courtesy of FORD MOTOR COMPANY

In 1st gear, the shift shaft assembly slides the 1-2 synchronizer sleeve back onto 1st gear to lock it to the output shaft. Torque is transferred from the input shaft to the countershaft through the countershaft drive gear and from the countershaft to the output shaft through 1st gear.
