Fifth Gear Powerflow
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

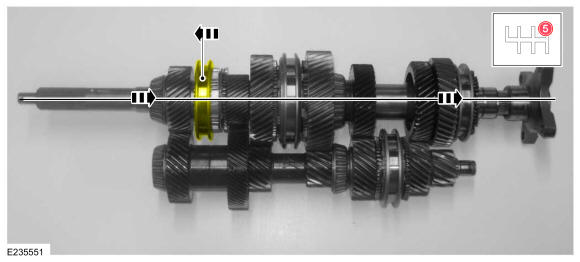

In 5th gear, the shift shaft assembly slides the 5-6 synchronizer sleeve forward onto the input shaft to lock the input shaft to the output shaft. Torque is transferred from the input shaft to the output shaft through the 5-6 synchronizer sleeve and provides direct drive through the transmission.
