Upshift Paddle Switch: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the driver air bag. Refer to: Driver Airbag .

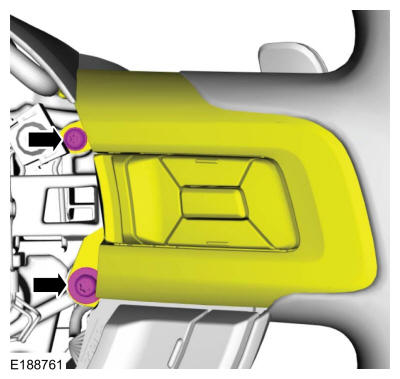

- Remove the screws and position the RH speed control switch aside to access the electrical connector.

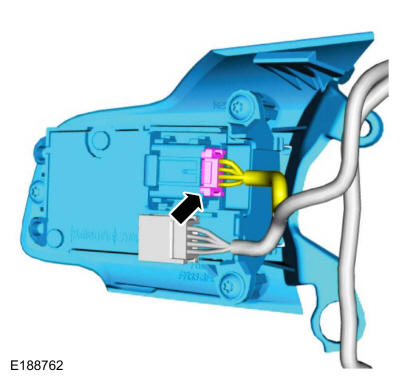

- Disconnect the RH speed control switch electrical connector and remove the switch.

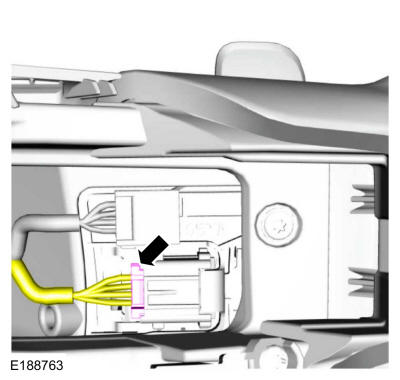

- Disconnect the upshift paddle switch electrical connector.

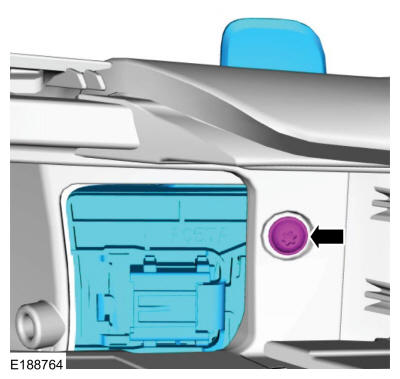

- Remove the screw and the upshift paddle switch.
