Manual Park Release Cable Position Switch: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the floor console. Refer to: Floor Console .

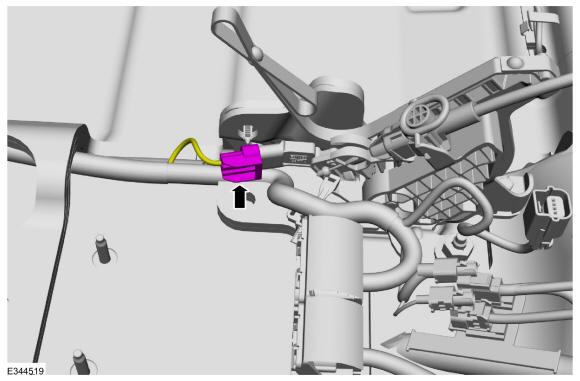

- Disconnect the manual park release cable position switch.

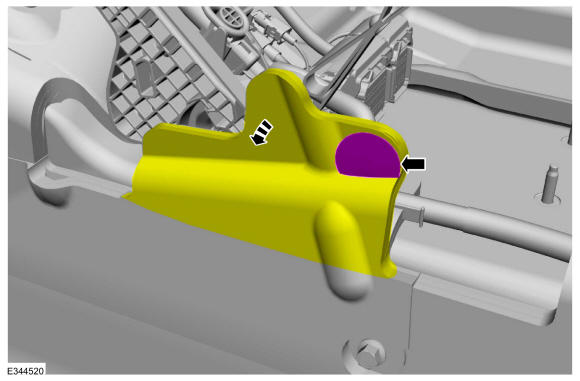

- Release the push pin and fold the carpet for access.
-
NOTE: Use caution not to over tighten the screw when installing.

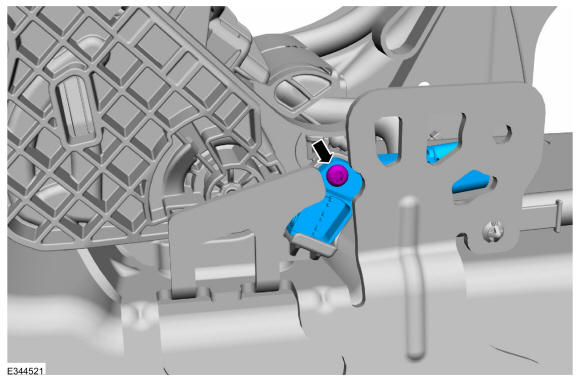

Remove the screw and the manual park release cable position switch.
