Gear Shift Module (GSM): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

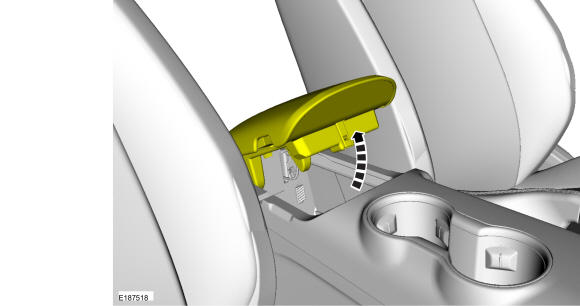

- Open the floor console lid.

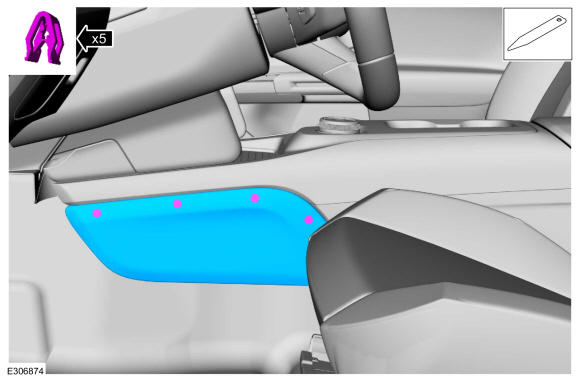

- Release the clips and remove the floor console LH side trim panel. Use the General Equipment: Interior Trim Remover

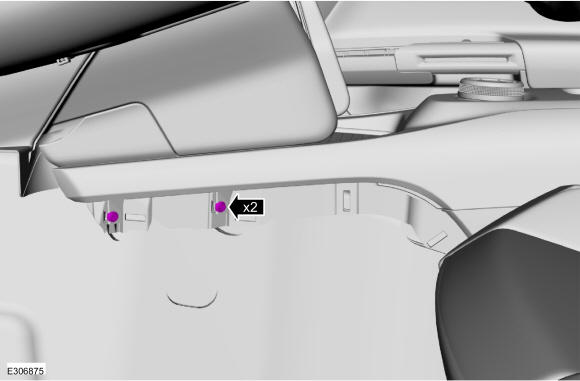

- Remove the LH side front screws.

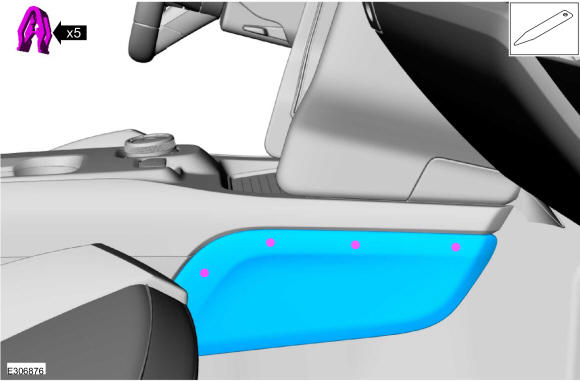

- Release the clips and remove the floor console RH side trim panel. Use the General Equipment: Interior Trim Remover

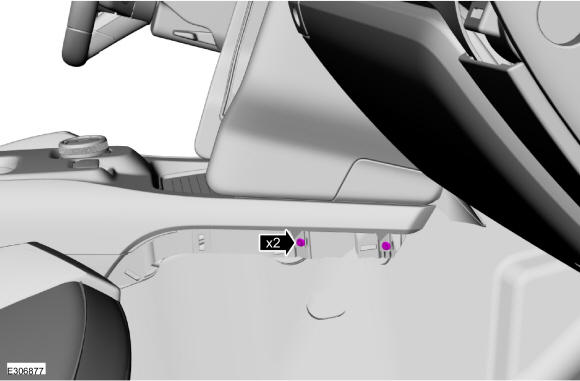

- Remove the RH side front screws.

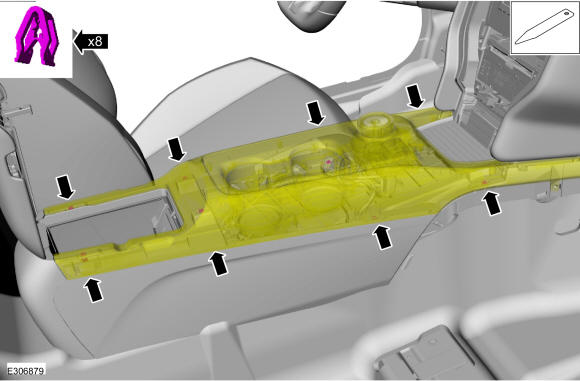

- Release the floor console clips. Use the General Equipment: Interior Trim Remover

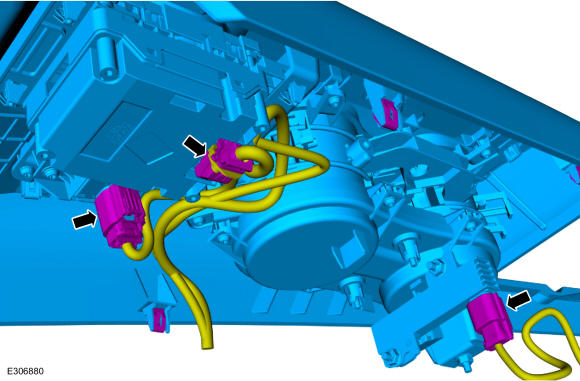

- Disconnect the connectors and remove the floor console trim panel.

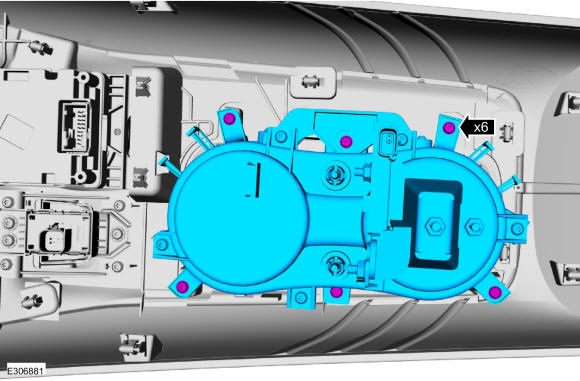

- Remove the screws and the cup holder.

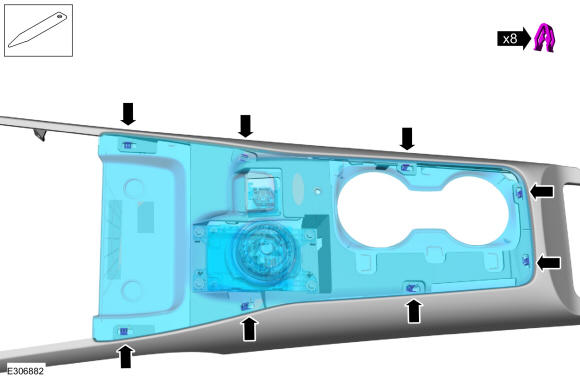

- Release the clips and remove the floor console upper trim panel.

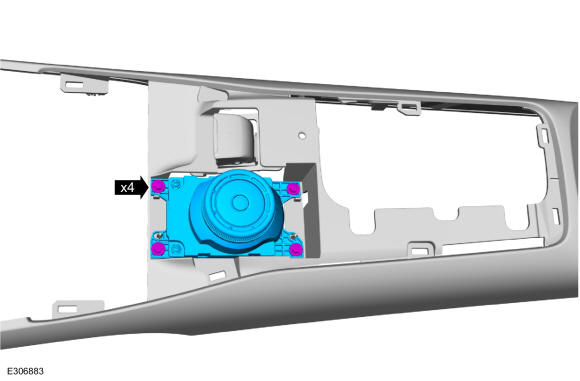

- Remove the screws and the GSM.
