Transmission Park by Wire Manual Release
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Activation
NOTE:
This vehicle is equipped with a brake shift interlock feature that prevents the vehicle from being moved out of P when the ignition is in the ON position until the brake pedal is applied. Proceed with this procedure if the vehicle cannot be moved out of the P position when the ignition is in the ON position and the brake pedal is applied.

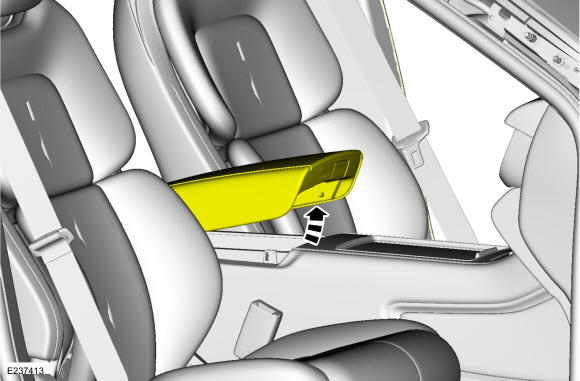

- Open the floor console arm rest.

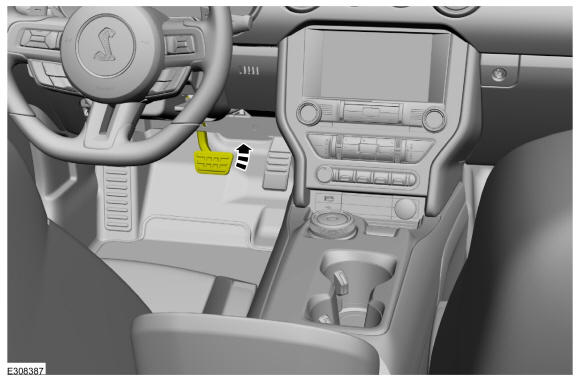

- Press the brake pedal.

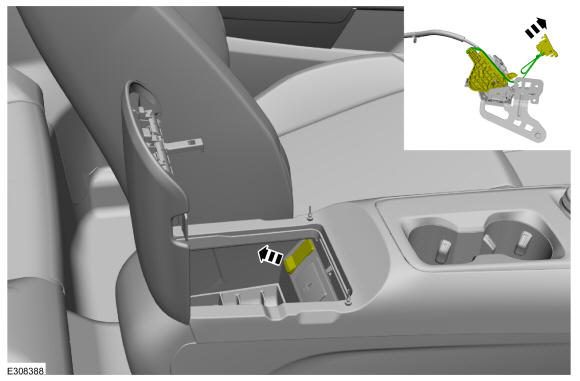

- Release the park over ride pull strap cover free from the center console and pull the park override strap to release the transmission from park.
-
NOTE: When the brake pedal is applied and the park release strap is pulled and there is battery power, the parking brake is electronically applied.
-
NOTE: This step only needs to be done if there is battery power available.

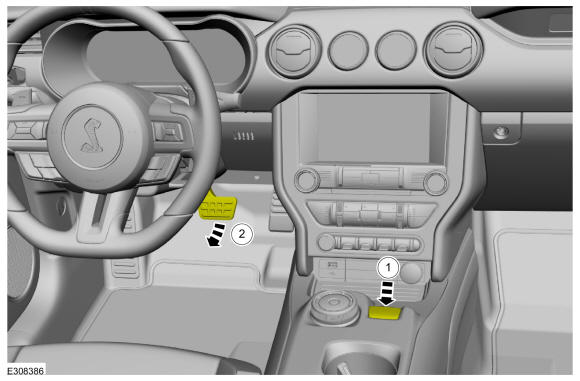

Release the parking brake, by pushing down on the parking break actuator lever.
- Release the brake pedal.
-
Deactivation
- Press the brake pedal.
- Pull the park override strap to release the park position override.
-
NOTE: When the brake pedal is applied and the park release strap is pulled and the there is battery power, the parking brake is electronically applied.
-
NOTE: This step only needs to be done if there is battery power available.
Release the parking brake, by pushing down on the parking break actuator lever.
- Release the brake pedal.
-
- Position the park release strap back in the center console and snap the park release strap cover back in place. Close the center console arm rest.
