Overview
The Tremec ACT 7 speed Dual Clutch transmission is a automatic shifting manual transmission with full manual paddle shifting option. This is a fuel efficient transmission that is capable of handling high torque applications. The internal clutch is a high efficient dual wet clutch. The planetary gyrator pump provides the system pressure and lubrication. actuation system with low leak solenoids provides the fast and precise clutch and gear control.

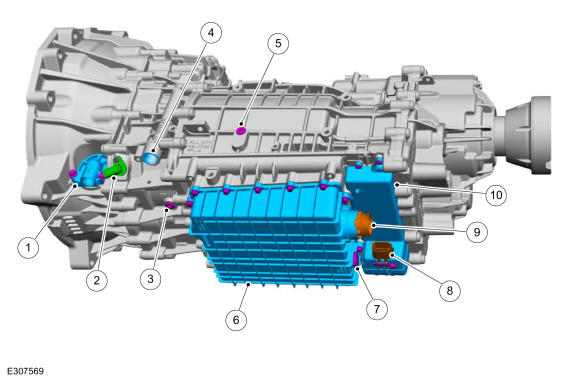

| Item | Description |
|---|---|
| 1 | Fluid fine filter cover (return to transmission cooler line connection) |
| 2 | Input shaft speed (ISS) sensor |
| 3 | Transmission drain plug |
| 4 | Fluid cooler line connection (to cooler) |
| 5 | Transmission fluid fill plug |
| 6 | Fluid filter pan |
| 7 | Transmission fluid filter pan drain plug |
| 8 | Harness sensor connector |
| 9 | Transmission bulkhead connector |
| 10 | Harness sensor connector cover |

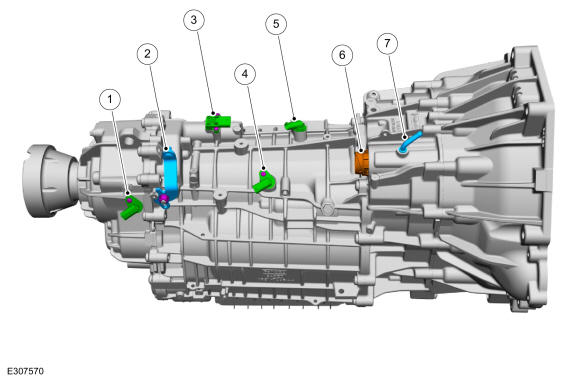

| Item | Description |
|---|---|
| 1 | Output shaft speed (OSS) sensor |
| 2 | Manual park release lever |
| 3 | Park position sensor |
| 4 | Intermediate Speed Sensor B (ISSB) - Even clutch output speed |
| 5 | Intermediate Speed Sensor A (ISSA) - Odd clutch output speed |
| 6 | Input hub bulkhead |
| 7 | Transmission vent |

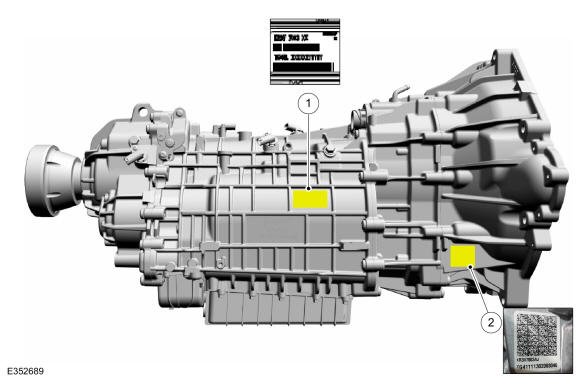

| Item | Description |
|---|---|
| 1 | Bar code label. |
| 2 | Datamatrix code label. (Scan label for solenoid strategy) The last 11 digits of the tag i.d. number is the solenoid strategy number. Example TG411 11302008046 |

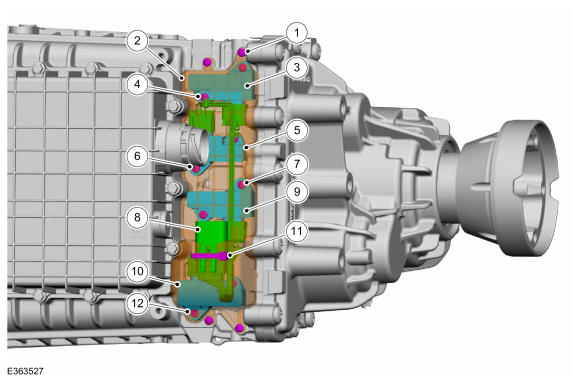

Gearshift Rail and Fork Position Sensor Harness
| Item | Description |
|---|---|
| 1 | Gearshift rail and fork position sensor wire harness cover bolts (4) |
| 2 | Gearshift rail and fork position sensor wire harness cover |
| 3 | Synchronizer Actuation Position Sensor 2/6 (SAPS4) |
| 4 | Synchronizer Actuation Position Sensor 2/6 (SAPS4) bolts (2) |
| 5 | Synchronizer Actuation Position Sensor 5/7 (SAPS2) |
| 6 | Synchronizer Actuation Position Sensor 5/7 (SAPS2) bolts (2) |
| 7 | Synchronizer Actuation Position Sensor R/4 (SAPS3) bolts (2) |
| 8 | Gearshift rail and fork position sensor wire harness |
| 9 | Synchronizer Actuation Position Sensor R/4 (SAPS3) |
| 10 | Synchronizer Actuation Position Sensor 1/3 (SAPS1) |
| 11 | Gearshift rail and fork position sensor wire harness to cover tie |
| 12 | Synchronizer Actuation Position Sensor 1/3 (SAPS1) bolts (2) |

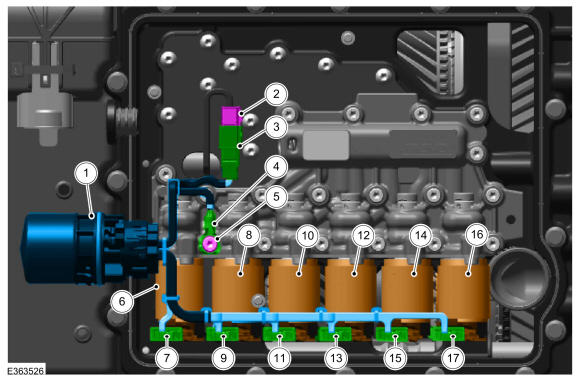

Transmission Internal Wiring Harness
| Item | Description |
|---|---|
| 1 | Internal wiring harness bulkhead connector |
| 2 | Park Lock Hold Solenoid (PLHS) connector |
| 3 | Internal harness Park Lock Hold Solenoid (PLHS) connector |
| 4 | Temperature sensor |
| 5 | Temperature sensor bolt |
| 6 | Parking Lock Disengagement Valve (PLDV) solenoid |
| 7 | Parking Lock Disengagement Valve (PLDV) solenoid connector |
| 8 | Synchronizer Pressure Control Valve 3 (SPV3) solenoid |
| 9 | Synchronizer Pressure Control Valve 3 (SPV3) solenoid connector |
| 10 | Synchronizer Pressure Control Valve 4 (SPV4) solenoid |
| 11 | Synchronizer Pressure Control Valve 4 (SPV4) solenoid connector |
| 12 | Synchronizer Pressure Control Valve 1 (SPV1) solenoid |
| 13 | Synchronizer Pressure Control Valve 1 (SPV1) solenoid connector |
| 14 | Synchronizer Pressure Control Valve 2 (SPV2) solenoid |
| 15 | Synchronizer Pressure Control Valve 2 (SPV2) solenoid connector |
| 16 | Selector Pilot Valve (SELPV) solenoid |
| 17 | Selector Pilot Valve (SELPV) solenoid connector |

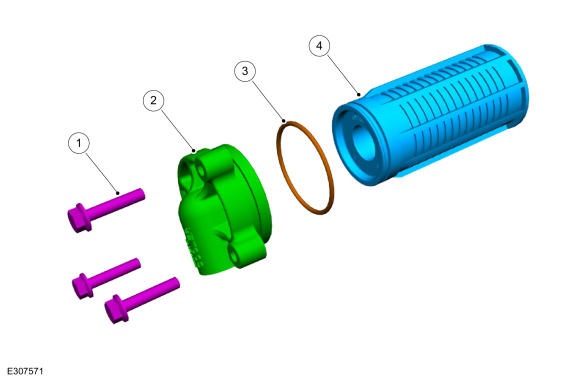

Transmission fluid fine filter
| Item | Description |
|---|---|
| 1 | Transmission fluid fine filter cover bolts |
| 2 | Transmission fluid fine filter cover |
| 3 | Transmission fluid fine filter cover O-ring |
| 4 | Transmission fluid fine filter |

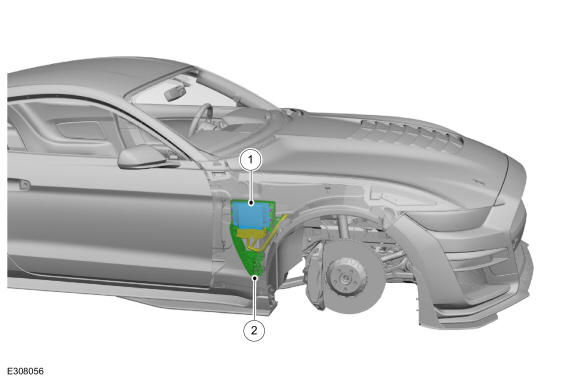

Transmission Control Module (TCM)
| Item | Description |
|---|---|
| 1 | Transmission control module |
| 2 | Transmission control module bracket |
