Throttle Body: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner. Refer to: Air Cleaner .

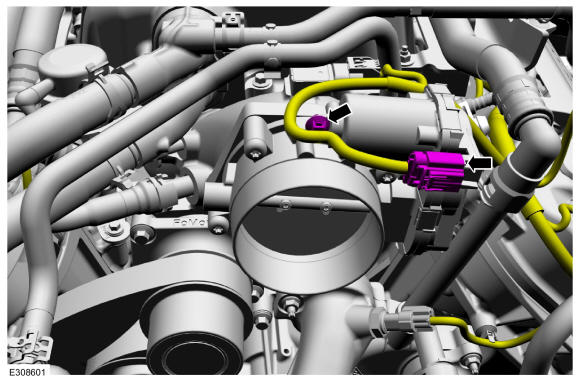

- Disconnect the throttle body electrical connector, then detach the wire retainer.

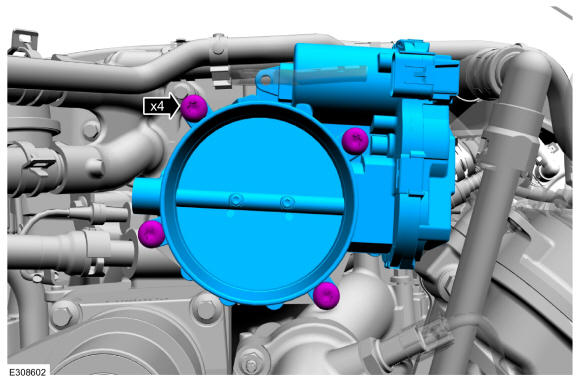

- Remove the throttle body retaining bolts, then remove the throttle body.
