Throttle Body: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Make sure that the mating faces are clean and free of foreign material.

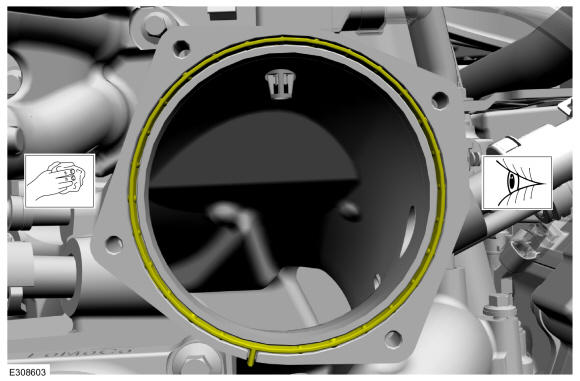

- Inspect the throttle body gasket, clean or replace as needed. Clean the mating faces.
- Install the throttle body, then install and tighten the throttle body retaining bolts in the following 2 stages.
Torque:
Stage 1: 89 lb.in (10 Nm)
Stage 2: 60°
- Attach the wire retainer, then connect the throttle body electrical connector.
- Install the air cleaner. Refer to: Air Cleaner .
- Road test the vehicle.
