Fuel Pump Driver Module (FPDM): Installation
WARNING: This page is about a different variant/trim than selected.

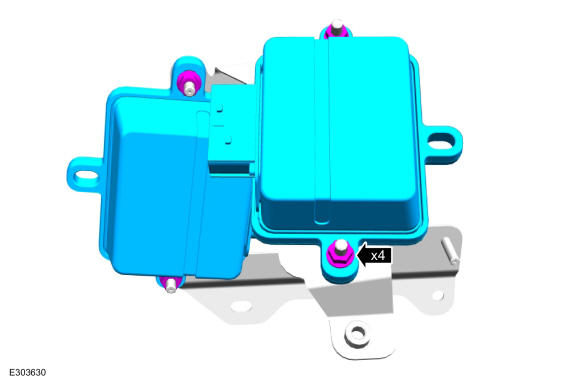

- Install the fuel pump driver modules to the bracket, then install and tighten the fuel pump driver module retainers.
Torque: 106 lb.in (12 Nm)

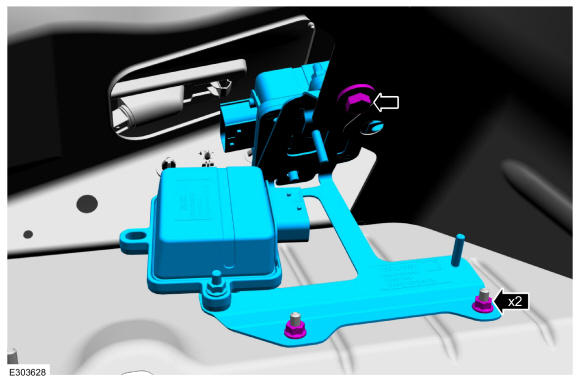

- Install the fuel pump driver module assembly, then install and tighten the fuel pump driver module assembly retainers.
Torque:
Tighten the bolt to: : 17 lb.ft (23 Nm)
Tighten the nuts to: : 106 lb.in (12 Nm)

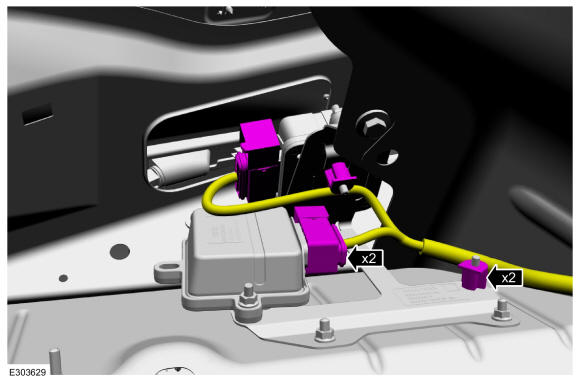

- Connect the fuel pump driver module electrical connectors, then attach the wire harness retainers.

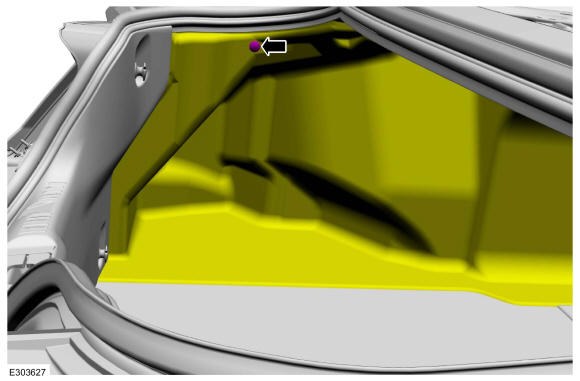

- Install the left side luggage compartment carpet, then install the retainer.
