Section 27 (Fuel Charging And Controls - 5.2L 32V Ti-VCT - Supercharged)
>>
Description And Operation
>>

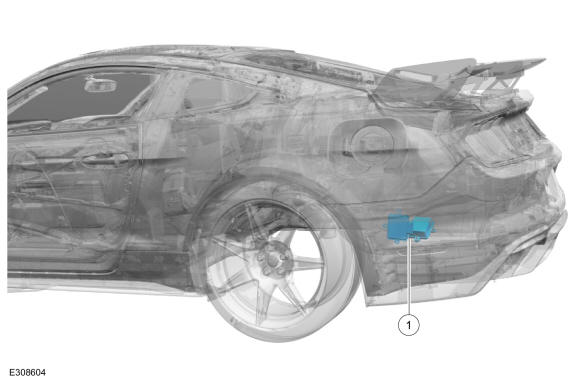

Fuel Charging and Controls - Component Location
>>
Fuel Pump Driver Module Assembly
Fuel Pump Driver Module Assembly
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Fuel pump driver module assembly
