5.2L 32V Ti-VCT Supercharged
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

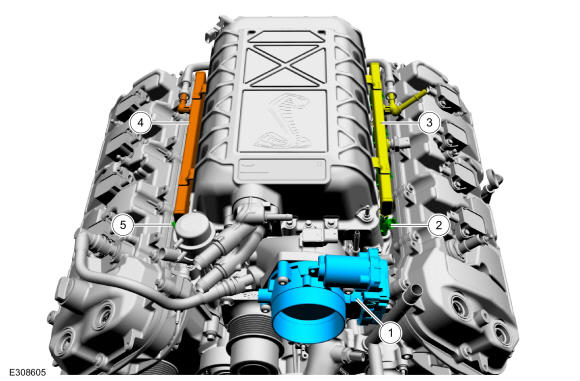

| Item |
Description |
| 1 |
Throttle body |
| 2 |
Fuel injector left |
| 3 |
Port injection fuel rail left |
| 4 |
Port injection fuel rail right |
| 5 |
Fuel injector right |
