Positive Crankcase Ventilation (PCV) Valve: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

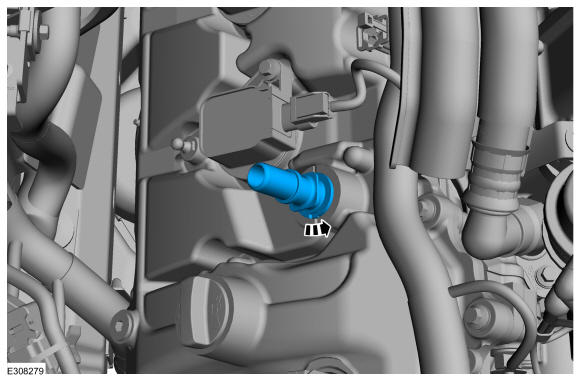

- Disconnect the crankcase ventilation tube-to-PCV valve quick connect coupling. Refer to: Quick Release Coupling
.
- Remove the RH spark plug cover.
-
NOTE: A new PCV valve must be installed if removed. Damage will occur to the locking mechanism on the PCV valve.

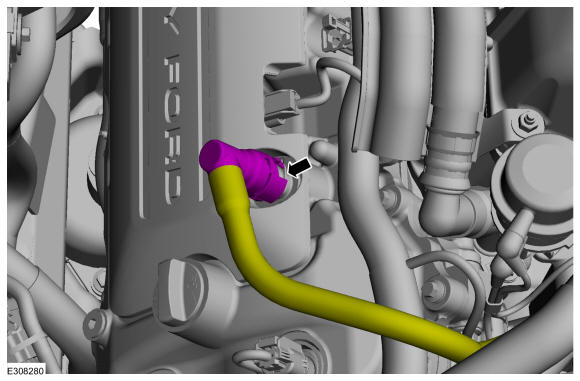

Rotate the PCV valve counterclockwise and remove the PCV valve. Discard the PCV valve.
