Crankcase Ventilation Tube: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

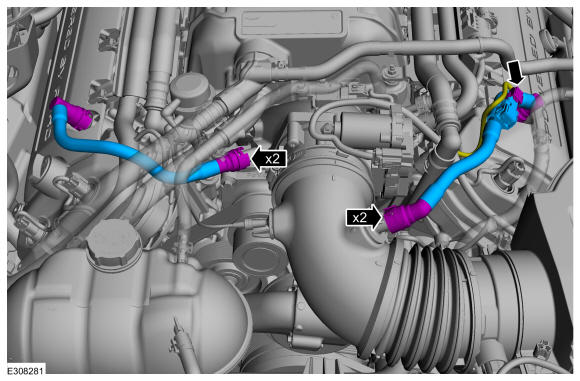

    • Disconnect the electrical connector.

    • Disconnect the crankcase ventilation tube-quick connect couplings and crankcase ventilation tube.

GFD717922Courtesy of FORD MOTOR COMPANY
