Crankcase Ventilation Tube - Vehicles With: Race Track Pack: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

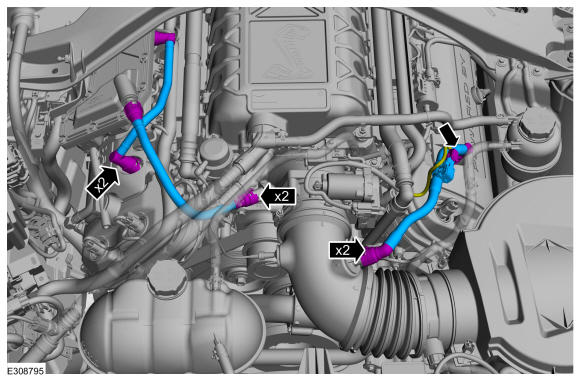

Detach the wiring harness straps.

Courtesy of FORD MOTOR COMPANY

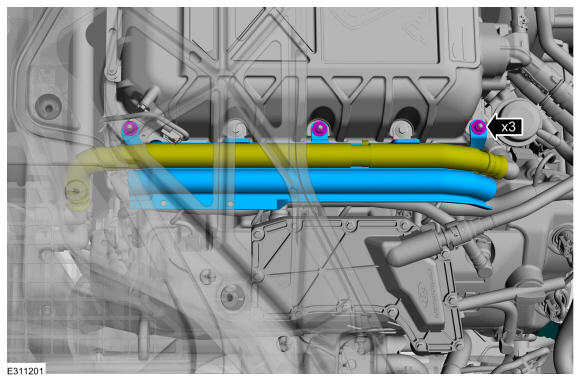

- Position the heater hoses aside.
- Remove the nuts and then remove the heater hose supports.
Courtesy of FORD MOTOR COMPANY

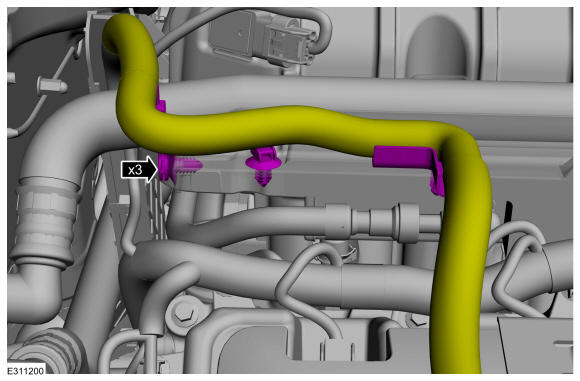

- Disconnect the electrical connector.
- Disconnect the crankcase ventilation tube-quick connect couplings and crankcase ventilation tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
