Crankcase Vent Oil Separator - Vehicles With: Race Track Pack: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

- NOTE: The lower PCV hose is connected to the oil separator, at the rear. It will remain with the oil separator as it is removed. It can be disconnected if necessary, after the oil separator removal.

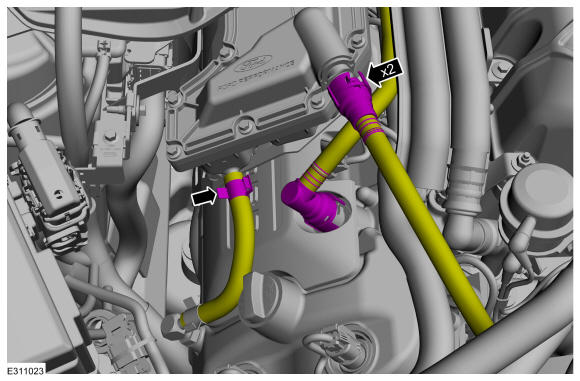

  Disconnect the quick connect couplings. Refer to: Quick Release Coupling .
- Release the clamp and disconnect the oil drain hose.
Courtesy of FORD MOTOR COMPANY

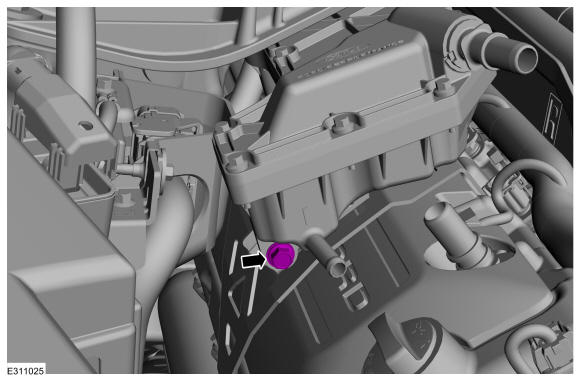

Remove the fastener.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

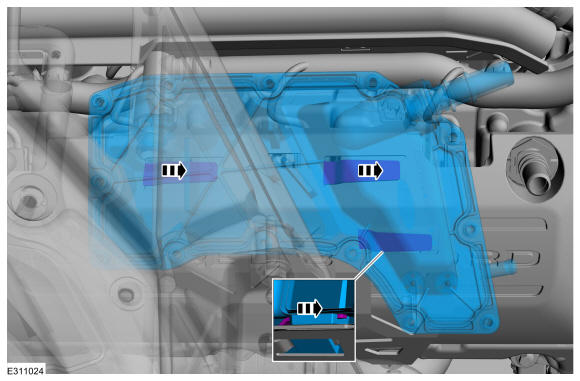

Remove the crankcase vent oil separator.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness straps and retainers.

Courtesy of FORD MOTOR COMPANY
Remove the crankcase vent oil separator bracket fasteners and bracket.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
