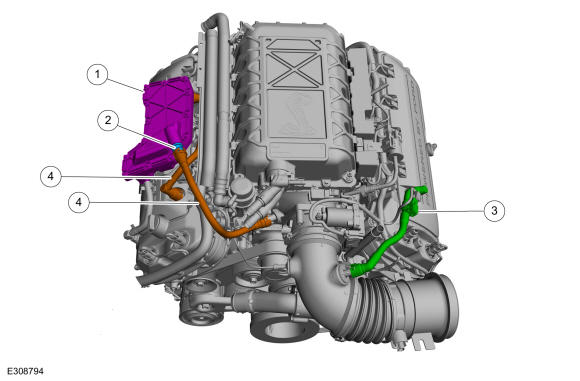

Engine Emission Control - Vehicles With: Race Track Pack - Component Location
WARNING: This page is about a different variant/trim than selected.
5.2L 32V Ti-VCT Supercharged
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Crankcase vent oil separator. |
| 2 |
PCV valve. |
| 3 |
Crankcase vent hose. |
| 4 |
PCV hose. |
