Ignition Coil-On-Plug: Installation

Both sides:

1. Inspect the ignition coil-on-plug assemblies for damage. Replace any damaged ignition coil-on-plugs. Replace any ignition coil-on-plug assemblies that have damaged seals or rubber boots.

   Courtesy of FORD MOTOR COMPANY

   Left side:

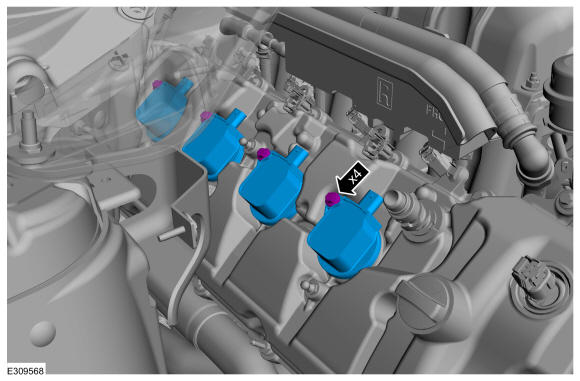

2. 1. Install the ignition coil-on-plugs.
   2. Install the ignition coil-on-plug bolts.

      Torque:

      Stage 1: 62 lb.in (7 Nm)

      Stage 2: 45°

   Courtesy of FORD MOTOR COMPANY

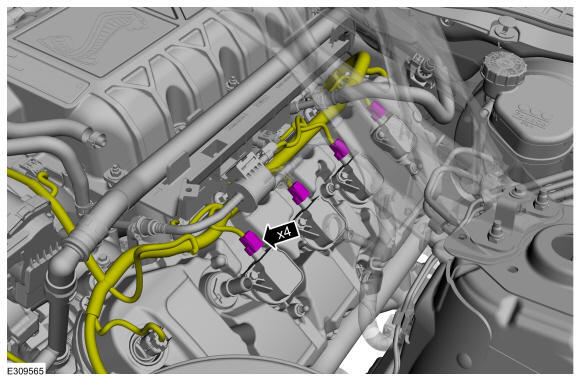

3. Slide the coil-on-plug electrical connector locking tabs into the engaged position to engage the connectors onto the coil-on-plug assemblies.

   Courtesy of FORD MOTOR COMPANY

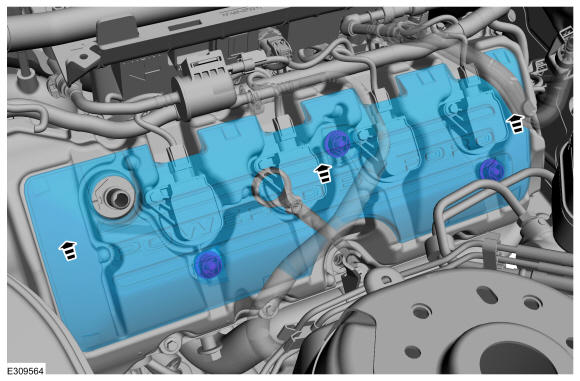

4. Install the ignition coil-on-plug cover.

   Courtesy of FORD MOTOR COMPANY

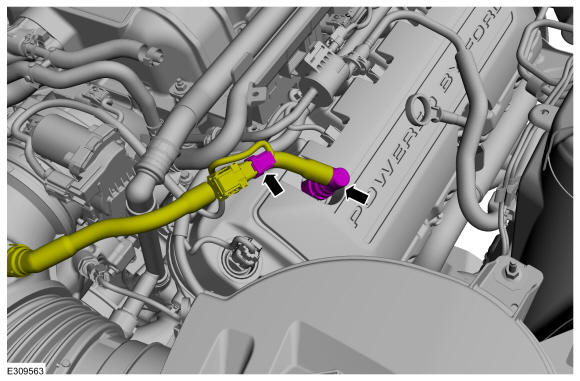

5. Connect the crank case sensor connector and connect the PCV quick release coupling. Refer to: Quick Release Coupling .

   Courtesy of FORD MOTOR COMPANY

   Right side:

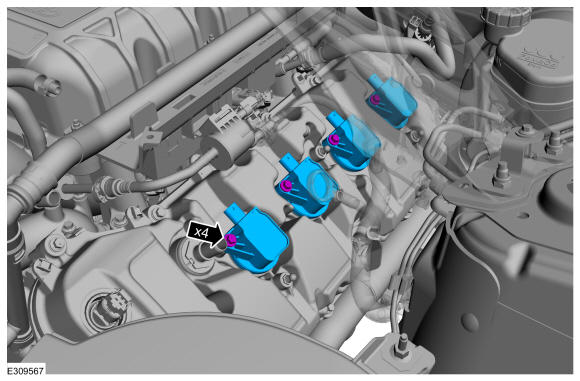

6. 1. Install the ignition coil-on-plugs.
   2. Install the ignition coil-on-plug bolts.

      Torque:

      Stage 1: 62 lb.in (7 Nm)

      Stage 2: 45°

   Courtesy of FORD MOTOR COMPANY

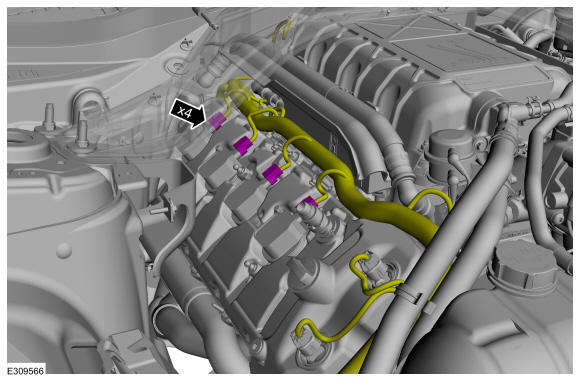

7. 1. Connect the ignition coil-on plug electrical connectors.
   2. Slide the coil-on-plug electrical connector locking tabs into the engaged position to engage the connectors onto the coil-on-plug assemblies.

   Courtesy of FORD MOTOR COMPANY

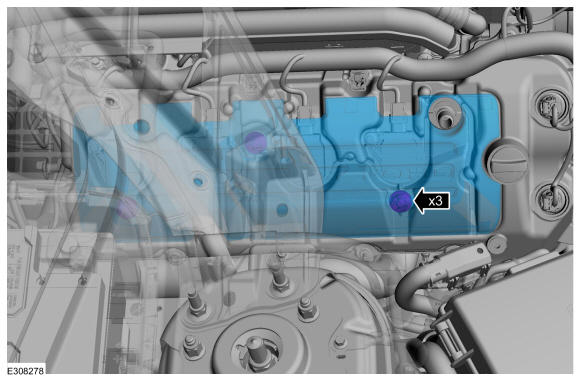

8. Install the ignition coil-on-plug cover.

   Courtesy of FORD MOTOR COMPANY

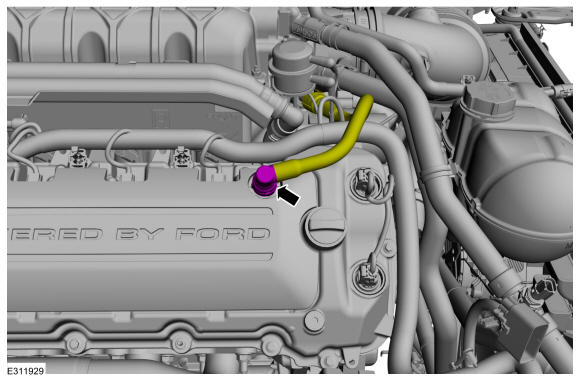

9. • Connect the quick connect coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
