Transmission Park Position Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the driveshaft. Refer to: Driveshaft

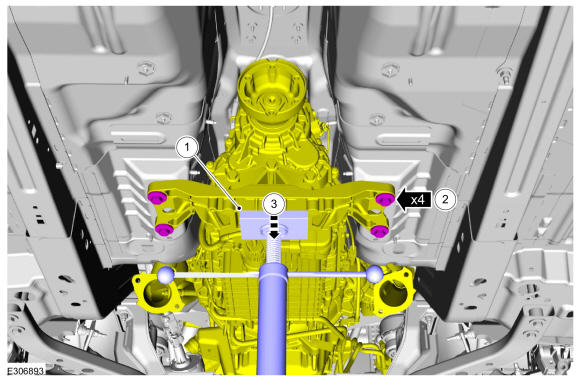

1. Position a screw type safety stand under the transmission mount. Use the General Equipment: Trolley Jack
2. Remove the transmission mount bolts.
  Torque: 46 lb.ft (63 Nm)
3. Lower the transmission.
Courtesy of FORD MOTOR COMPANY

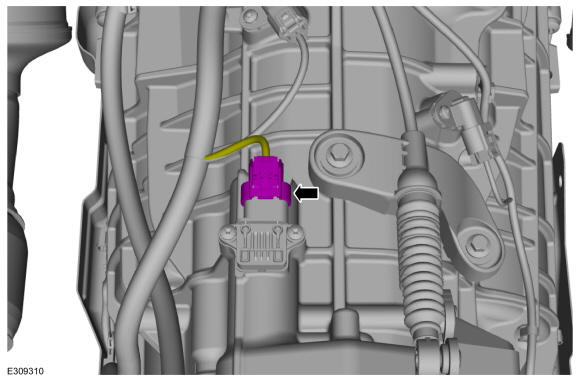

Disconnect the park position sensor and position the harness aside.

Courtesy of FORD MOTOR COMPANY

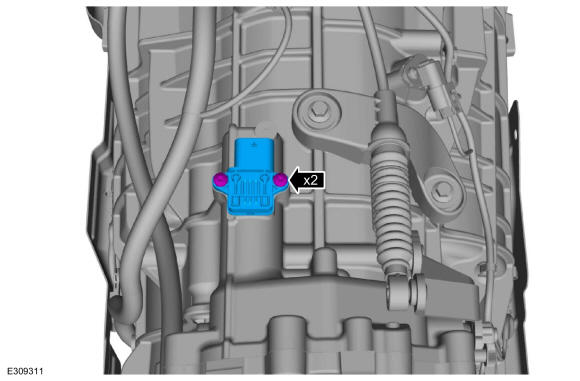

Remove the screws and the park position sensor.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
