Transmission Control Module (TCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH front wheel and tire. Refer to: Wheel and Tire
NOTE: Transmission control module programming is NOT necessary if the Transmission control module is being re-used.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine.

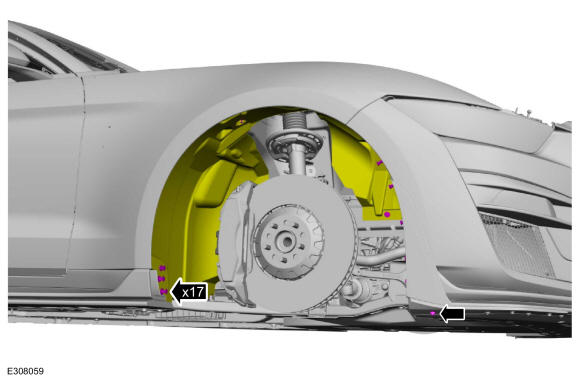

Remove the retainers and the inner fender shield.

Courtesy of FORD MOTOR COMPANY

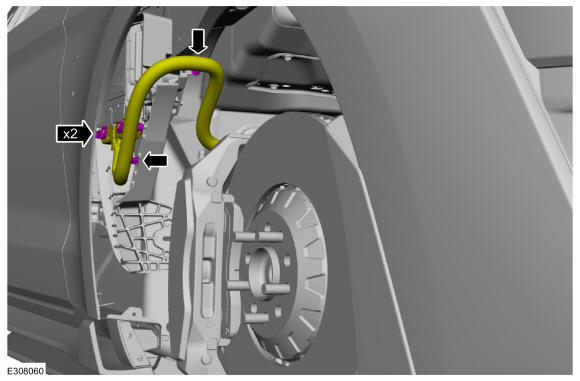

Disconnect the TCM and position the harness aside.

Courtesy of FORD MOTOR COMPANY

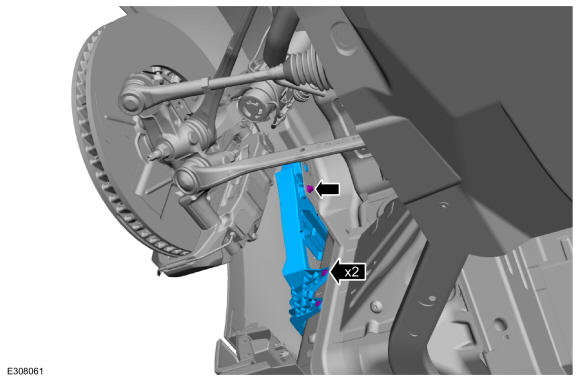

Remove the bolts and the TCM and TCM bracket.
Torque: Upper bolt : Nm Lower bolts : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

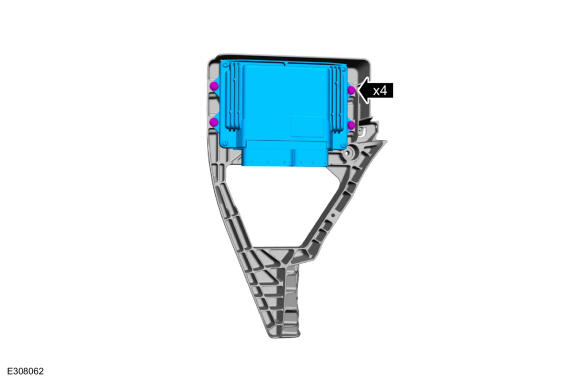

Remove the bolts and the TCM.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
