Output Shaft Speed (OSS) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the driveshaft. Refer to: Driveshaft

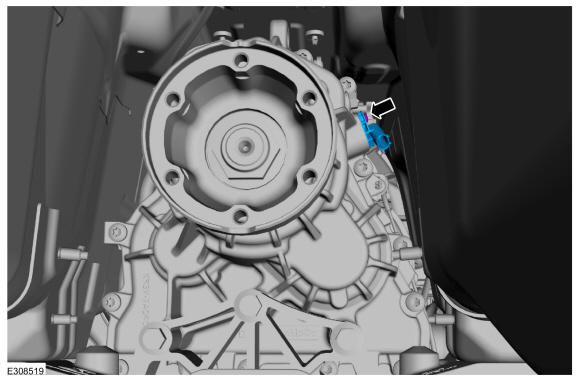

- Disconnect the OSS sensor and position the harness aside.

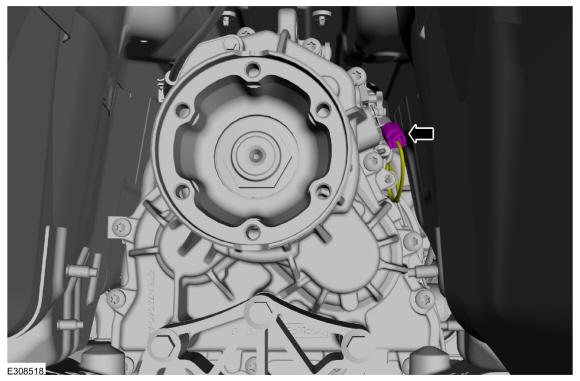

- Remove the bolt and the OSS sensor.
Torque: 27 lb.in (3 Nm)
- If reinstalling sensor. Clean and inspect the OSS sensor. Replace if necessary.
