Output Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - GT500 - Overview
  2. Remove the rear driveshaft assembly. Refer to: Driveshaft

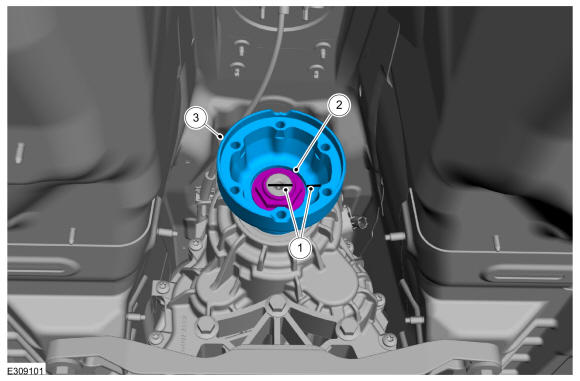

    1. Index mark the output shaft to the output shaft flange.
    2. Remove the output shaft flange bolt.
    3. Remove the output shaft flange.
    GFD718944Courtesy of FORD MOTOR COMPANY

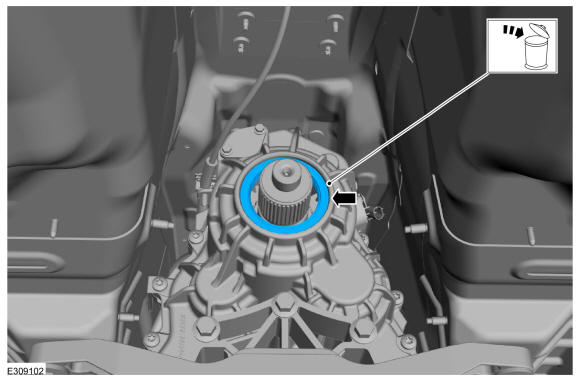

  4. Using the special tools, remove and discard the output shaft seal.
GFD718945Courtesy of FORD MOTOR COMPANY
