Output Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

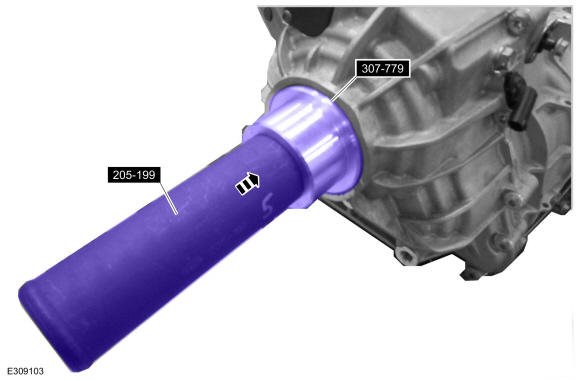

  1. Using the special tools, install the new output shaft seal. Use Special Service Tool: 307-779 Installer, Output shaft, 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft.
    GFD718946Courtesy of FORD MOTOR COMPANY

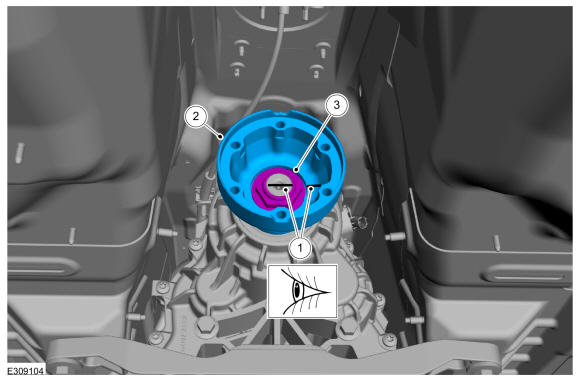

    1. Align the index marks on the output shaft and the output shaft flange made during removal.
    2. Install the output shaft flange.
    3. Install the output shaft flange nut.

      Torque: 100 lb.ft (135 Nm)

    GFD718947Courtesy of FORD MOTOR COMPANY
  3. Install the rear driveshaft assembly. Refer to: Driveshaft
  4. Check the transmission fluid level. Refer to: Transmission Fluid Level Check
