Intermediate Speed Sensor B (ISSB): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the driveshaft. Refer to: Driveshaft
1. Position a screw type safety stand under the transmission mount. Use the General Equipment: Trolley Jack
2. Remove the transmission mount bolts.
  Torque: 46 lb.ft (63 Nm)
3. Lower the transmission.
Courtesy of FORD MOTOR COMPANY

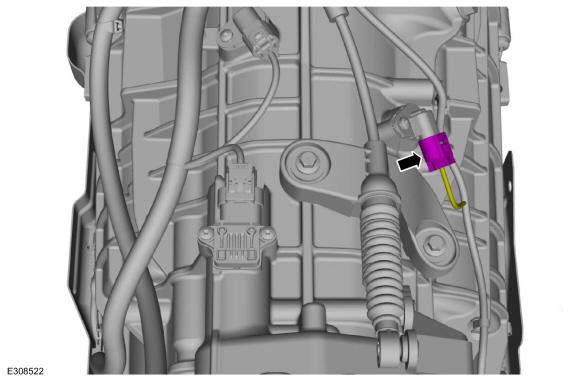

Disconnect the ISS A sensor and position the harness aside.

Courtesy of FORD MOTOR COMPANY

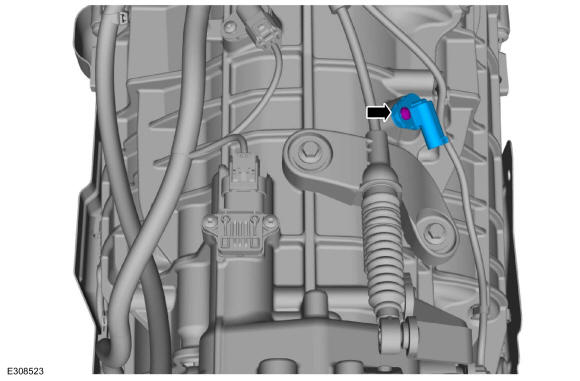

Remove the bolt and the ISS B sensor.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
If reinstalling sensor. Clean and inspect the ISS B sensor. Replace if necessary.

Courtesy of FORD MOTOR COMPANY
