Transmission Strategy Download

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Activation

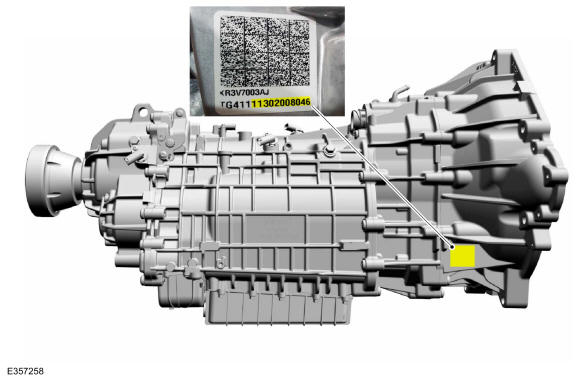

1. If a new TCM was installed, the TCM must be programmed with the Transmission Identification (TRID) data. The 11-digit TRID number can be found on the transmission barcode label on the right side of the transmission case. Using the diagnostic scan tool, carry out the following routine(s): Transmission Characterization/Solenoid IDN (identification number).

   Courtesy of FORD MOTOR COMPANY

2. Using the scan tool, select module Programming and Programmable Parameters under the toolbox icon and select transmission. Follow the instructions displayed on the scan tool. There are fields to enter the 11-digit solenoid strategy recorded from the solenoid body.
3. Compare the solenoid strategy label to the codes displayed on the scan tool. The codes displayed on the scan tool should match the label. If not, select the update option on the tool. Once the update option is selected the tool will ask the user what best describes the repair operation that was performed on the transmission. The scan tool will only allow the user to select 1 option. Once the selection is made, the user can enter the solenoid strategy code from the label into the entry box.
4. NOTE: If the solenoid body information is not correct, transmission damage or driveability concerns can occur.

   Enter the solenoid body 11-digit strategy. The scan tool verifies the numbers entered are valid and displays a message if the information is not valid. The scan tool will check to verify the file is present on the scan tool.

5. Follow the instructions on the network to download the strategy file to the scan tool.
6. Follow the instructions displayed on the scan tool.
7. The scan tool automatically downloads the strategy file. The scan tool displays a message when it is finished downloading the data that states that the file was downloaded successfully.
8. Road test the vehicle.
