Transmission Fluid Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

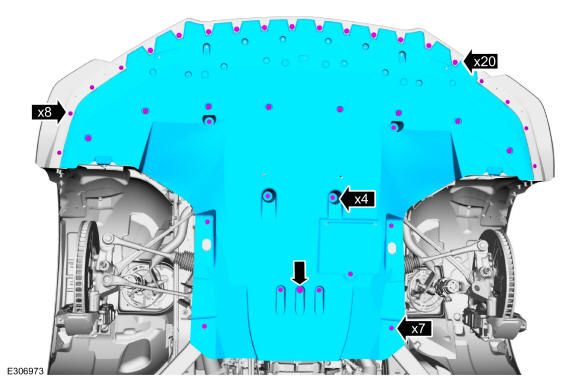

- Remove the bolts and the underbody shield.

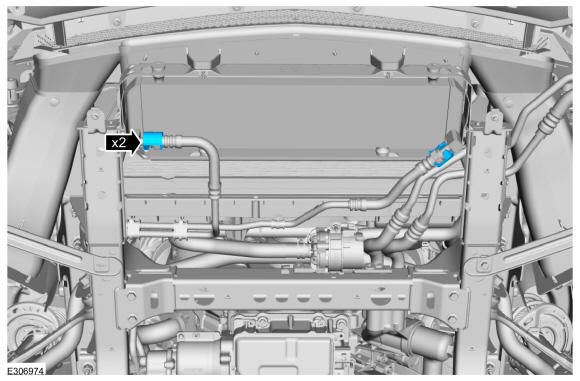

- Remove the cooler line connection secondary latches.
-
NOTE: Be prepared to collect escaping fluid.

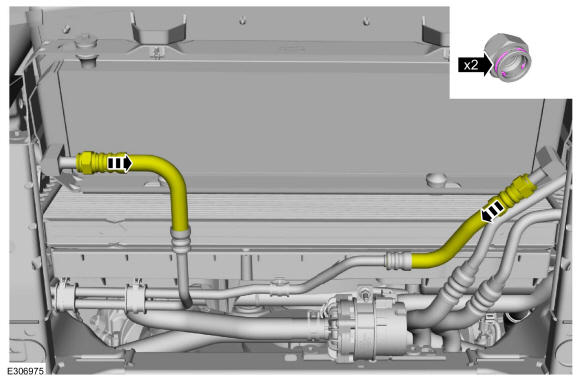

Disconnect the transmission fluid cooler tubes.

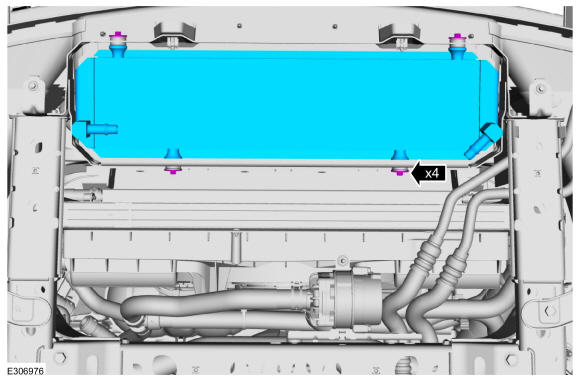

- Remove the bolts and the transmission fluid cooler.
Torque: 177 lb.in (20 Nm)
