Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different variant/trim than selected.

Inspect and lubricate the band seals and backing rings.
1. Backing ring.
2. Band seal.
  Material: Motorcraft® GT500 Dual Clutch Transmission Fluid / XT-14-L
Courtesy of FORD MOTOR COMPANY
Install the rear transmission fluid cooler tubes and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

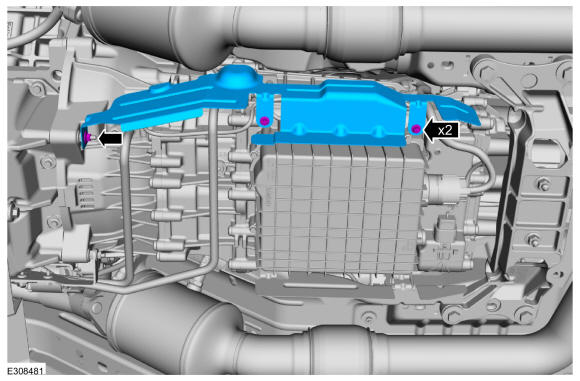

Install the transmission heat shield and the retainers.
Torque: Nut: 53 lb.in (6 Nm) Bolts: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Install the rear transmission fluid cooler tubes bracket retainers.
Torque: bracket nuts : 35 lb.ft (48 Nm) bracket bolt : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

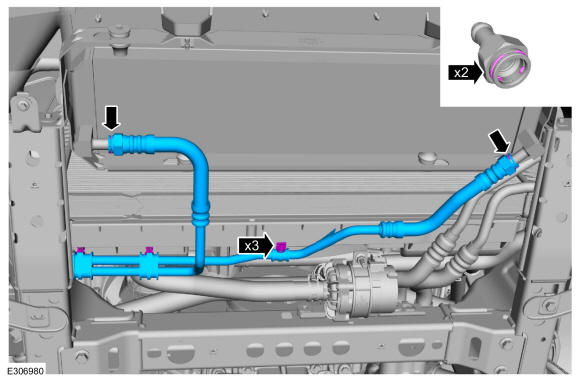

Install and connect the transmission fluid cooler tubes to the fluid cooler and install the clips.

Courtesy of FORD MOTOR COMPANY
Connect the rear transmission fluid cooler tubes to the front transmission fluid cooler tubes and install the retaining clips.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tubes secondary latches.

Courtesy of FORD MOTOR COMPANY
Install the engine front undershield. Refer to: Engine Front Undershield - GT500 .
Position the degas bottle and install the bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
