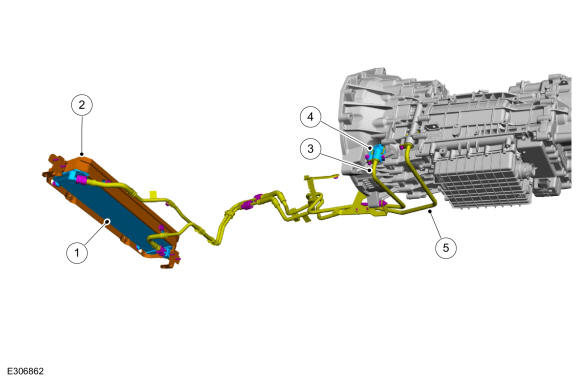

Transmission Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Transmission fluid cooler |
| 2 |
Transmission fluid cooler bracket |
| 3 |
Transmission fluid cooler tube assembly (to transmission) |
| 4 |
Transmission fine filter housing |
| 5 |
Transmission fluid cooler tube assembly (to cooler) |
