Removal And Installation: Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the supercharger cooling system. Refer to: Supercharger Cooling System Draining, Filling and Bleeding .
- Remove the A/C condenser. Refer to: Condenser - 5.2L 32V Ti-VCT - Supercharged .

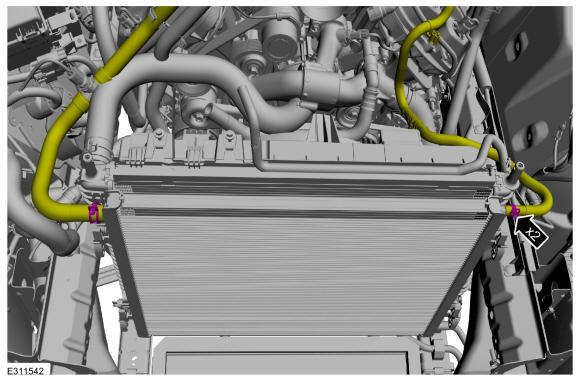

- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

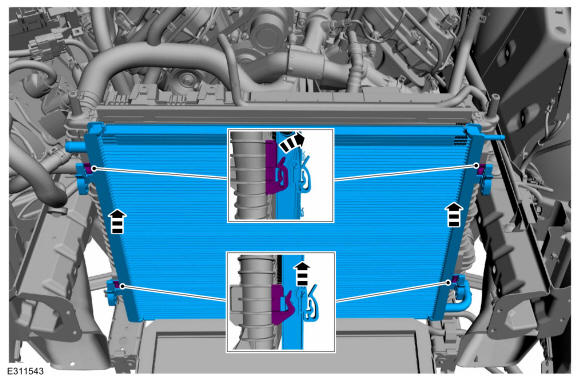

- Release the tabs and remove the radiator.
