Component Location

WARNING: This page is about a different variant/trim than selected.

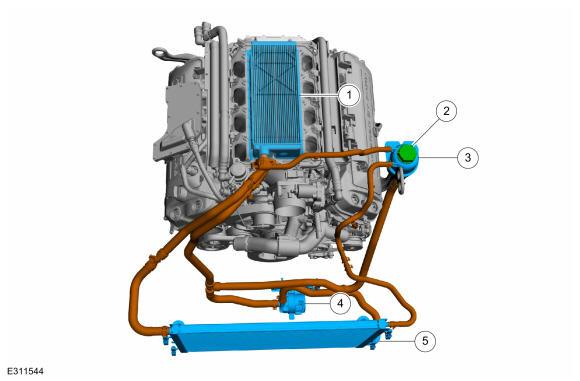

GFD717632Courtesy of FORD MOTOR COMPANY
Item Description
1 Engine charge air cooler
2 Pressure relief cap
3 Degas bottle
4 Coolant pump
5 Radiator
