Supercharger Belt: Removal
WARNING: This page is about a different variant/trim than selected.
- Refer to: Health and Safety Precautions .
- With the vehicle in NEUTRAL, Position the vehicle on a hoist. Refer to: Jacking and Lifting - GT500 - Overview .
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
- Remove the following items:

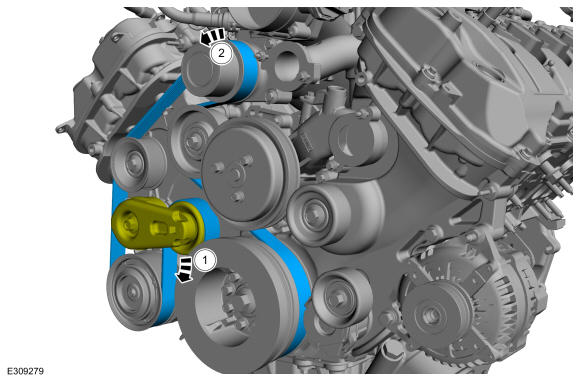

- Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
- Remove the supercharger belt.
