Supercharger Belt: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Make sure that the accessory and supercharger drive belts is correctly aligned to the pulleys. Failure to follow this instruction may result in damage to the vehicle.

    To install reverse the removal procedure.

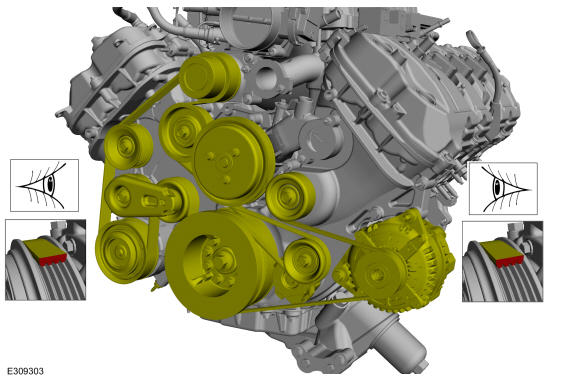

  2. After installation, make sure the supercharger and accessory drive belt are correctly seated on all the pulleys.
GFD717844Courtesy of FORD MOTOR COMPANY
