Supercharger Belt Tensioner: Removal
WARNING: This page is about a different variant/trim than selected.
- Refer to: Health and Safety Precautions .
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
- Remove the supercharger belt. Refer to: Supercharger Belt .

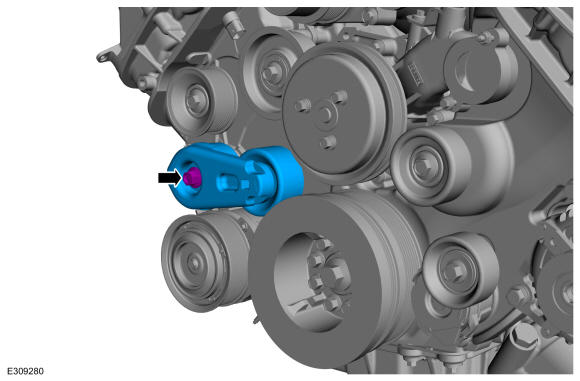

- Loosen the bolt and remove the supercharger belt tensioner.
Torque: 35 lb.ft (47.5 Nm)
