Supercharger Belt Idler Pulley: Removal
WARNING: This page is about a different variant/trim than selected.
- Refer to: Health and Safety Precautions .
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
- Remove the supercharger belt. Refer to: Supercharger Belt .

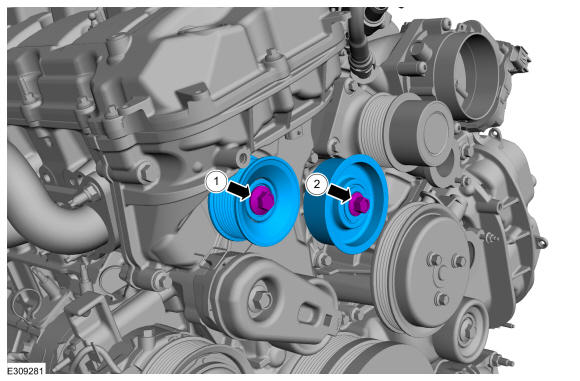

- Remove the following items:
- Loosen the bolt and remove the idler assembly.
Torque: 18 lb.ft (25 Nm)
- Loosen the bolt and remove the idler assembly.
Torque: 35 lb.ft (47.5 Nm)
- Loosen the bolt and remove the idler assembly.
