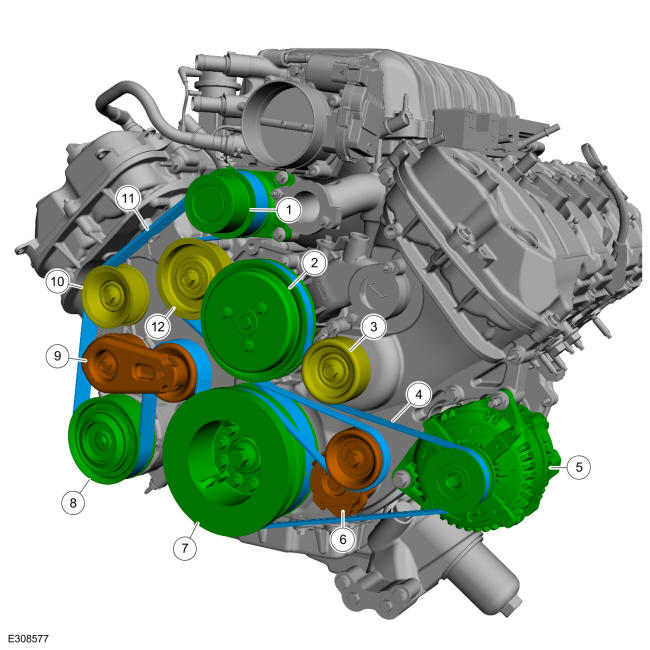

Accessory Drive - Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Supercharger drive pulley |
| 2 | Coolant pump pulley |
| 3 | Accessory drive belt idler |
| 4 | Accessory drive belt |
| 5 | Generator |
| 6 | Accessory drive belt tensioner |
| 7 | Crankshaft pulley |
| 8 | Supercharger pulley |
| 9 | Supercharger belt tensioner |
| 10 | Supercharger drive belt idler |
| 11 | Supercharger drive belt |
| 12 | Supercharger drive belt idler |
