Thermostat Housing: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the air cleaner outlet pipe.
NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.

Completely cover the accessory drive belts with waterproof plastic.

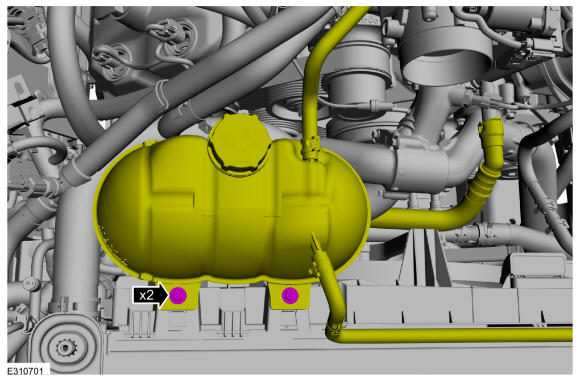

Remove the bolts and position the degas bottle aside.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

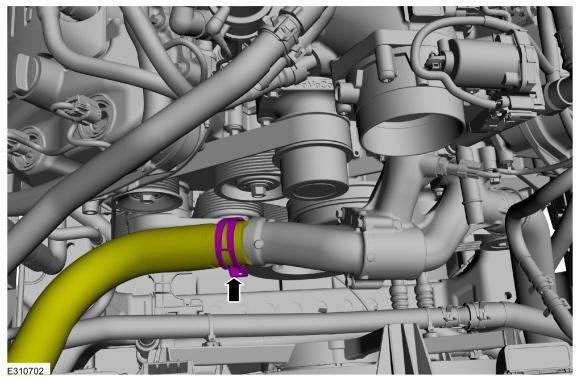

Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

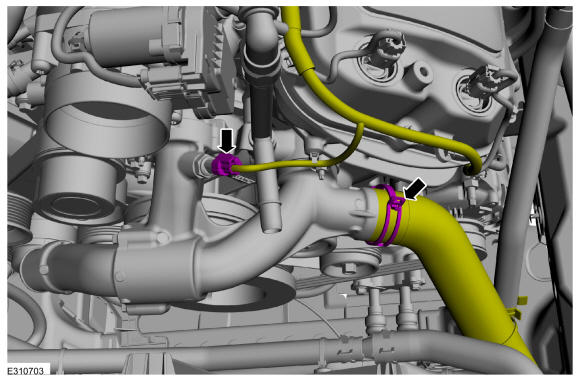

- Disconnect the ECT electrical connector.
- Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

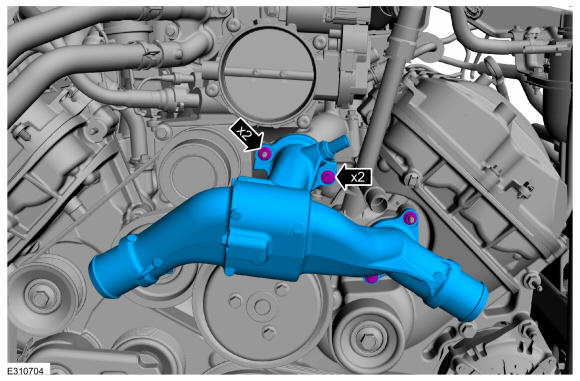

Remove the retainers and the thermostat housing.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

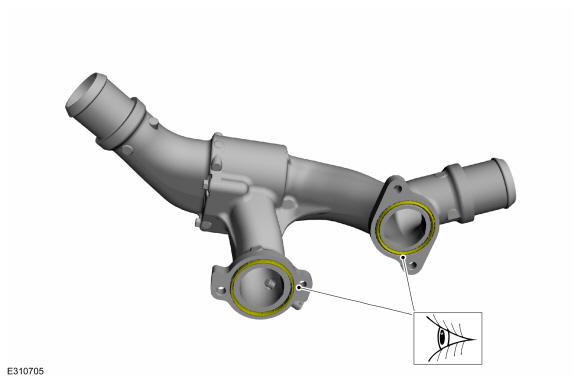

Inspect the O-ring seal and gasket and replace it if necessary.

Courtesy of FORD MOTOR COMPANY
