Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the air cleaner outlet pipe.
Remove the air cleaner. Refer to: Air Cleaner .
Remove the bolts and position the degas bottle aside.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

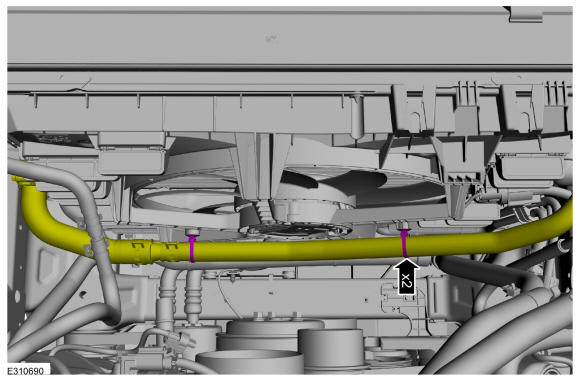

Detach the coolant hose retainers.

Courtesy of FORD MOTOR COMPANY

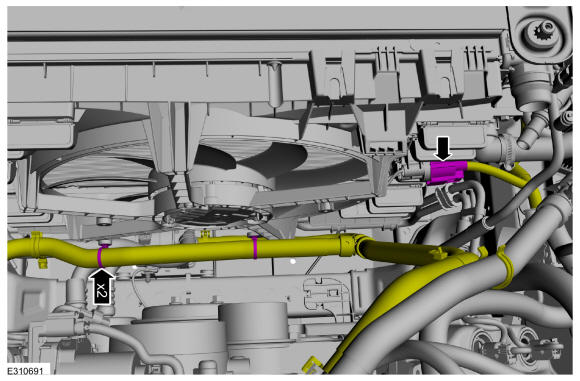

- Disconnect the cooling fan electrical connector.
- Detach the coolant hose retainers.
Courtesy of FORD MOTOR COMPANY

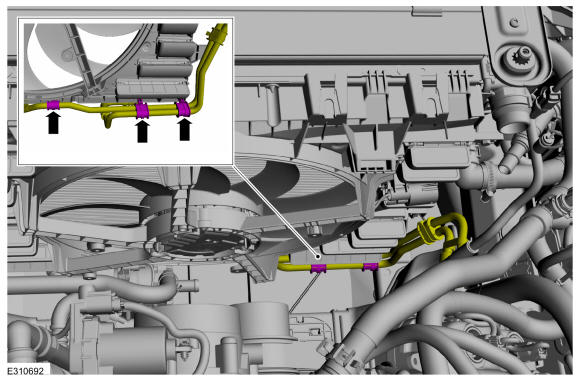

Detach the transmission oil cooler hose retainers.

Courtesy of FORD MOTOR COMPANY

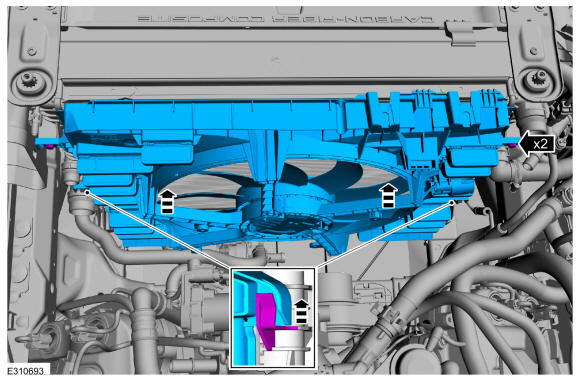

Remove the bolts and the cooling fan motor and shroud.
Torque: 55 lb.in (6.2 Nm)
