Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the thermostat housing. Refer to: Thermostat Housing .

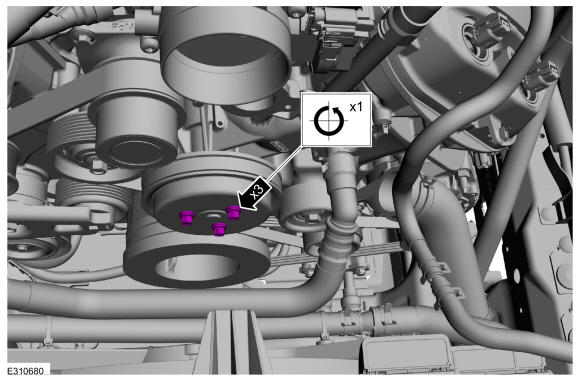

- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
-
NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.
Completely cover the A/C compressor belt with waterproof plastic.

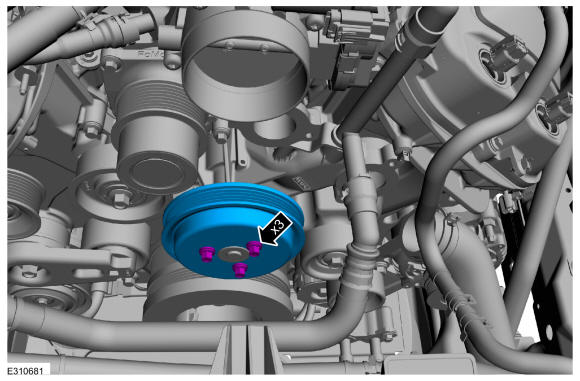

- Remove the bolts and the coolant pump pulley.

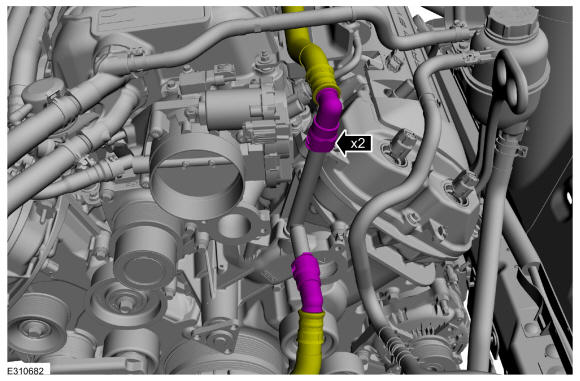

- Disconnect the coolant hose quick release couplings.

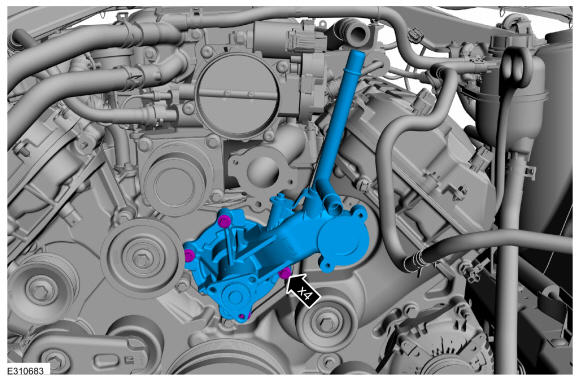

- Remove the bolts and the coolant pump.

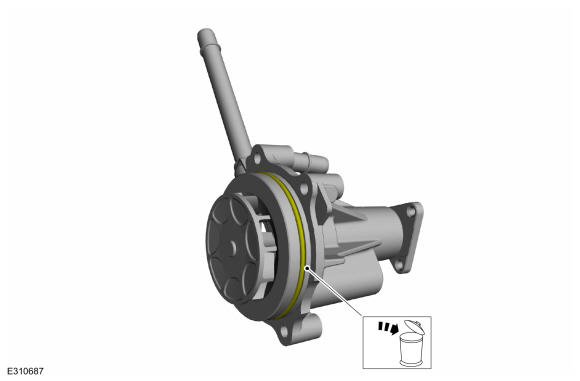

- Remove and discard the O-ring seal.
-
NOTE: This step is only necessary when installing a new component.

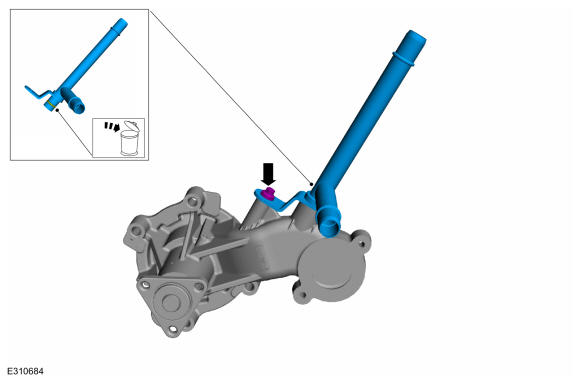

- Remove the bolt and the heater outlet tube.
- Remove and discard the O-ring seal.
