Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
NOTE:

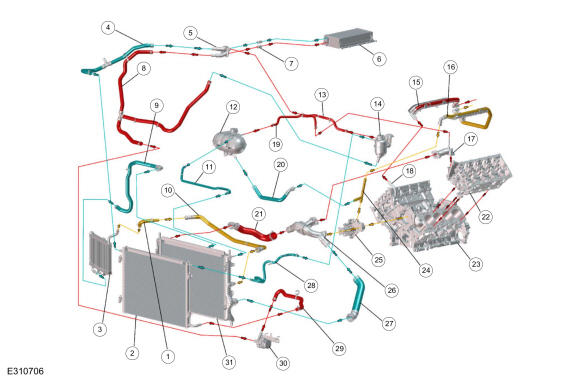

Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38° C (100° F). Red arrows indicate a temperature over 82.2° C (180° F), Orange arrows indicate a temperature of approximately 82.2° C (180° F), Blue arrows indicate a temperature below 82.2° C (180° F).
| Item | Description |
|---|---|
| 1 | Auxiliary heater outlet hose |
| 2 | Auxiliary radiator |
| 3 | Auxiliary heater |
| 4 | Auxiliary radiator outlet hose |
| 5 | Intake manifold intercooler water tube assembly |
| 6 | Engine charge air cooler |
| 7 | Intake manifold intercooler water connector |
| 8 | Intercooler hose assembly |
| 9 | Heater hose assembly |
| 10 | Auxiliary heater outlet hose |
| 11 | Radiator overflow hose |
| 12 | Degas bottle |
| 13 | Degas bottle hose assembly |
| 14 | Coolant expansion tank |
| 15 | Heater inlet hose |
| 16 | Heater outlet hose |
| 17 | Coolant outlet connector |
| 18 | Heater water inlet tube |
| 19 | Engine vent hose |
| 20 | Degas bottle hose assembly |
| 21 | Upper radiator hose |
| 22 | Cylinder head LH |
| 23 | Block cylinder |
| 24 | Coolant heater outlet tube |
| 25 | Coolant pump |
| 26 | Thermostat housing |
| 27 | Lower radiator hose |
| 28 | Auxiliary radiator overflow hose |
| 29 | Cooler hose assembly |
| 30 | Coolant charge intercooler pump |
| 31 | Radiator |
