Rocker Arm: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the LH and/or RH valve covers. Refer to: Valve Cover LH . Refer to: Valve Cover RH .

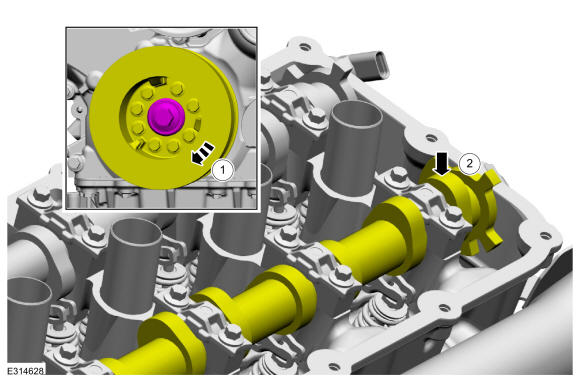

  2. Rotate the crankshaft pulley bolt clockwise to position the camshaft lobe upward for the camshaft roller follower to be removed.
    GFD717277Courtesy of FORD MOTOR COMPANY

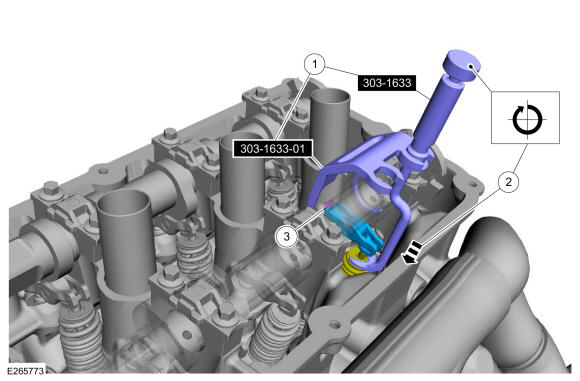

    1. Install Special Service Tool: 303-1633 Remover, Roller Rocker Follower., 303-1633-01 Remover, Roller Rocker Follower.
    2. Turn the knob on the special tool clockwise to depress the valve and spring.
    3. Disengage the spring clip from the hydraulic lash adjuster and remove the rocker arm.
GFD716821Courtesy of FORD MOTOR COMPANY
