Rocker Arm: Installation

WARNING: This page is about a different variant/trim than selected.

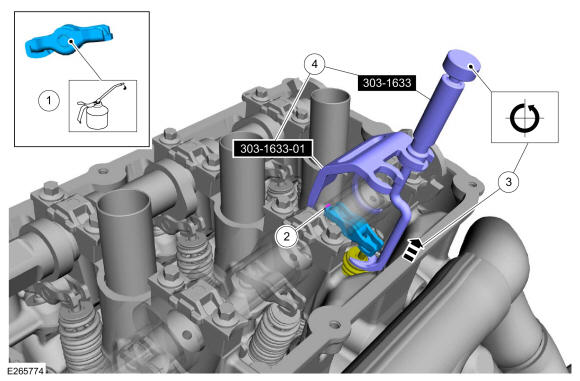

    1. Lubricate the rocker arms with clean engine oil.
    2. Install the rocker arm and engage the spring clip onto the hydraulic lash adjuster.
    3. Turn the knob on the special tool counterclockwise to raise the valve and spring.
    4. Remove Special Service Tool: 303-1633 Remover, Roller Rocker Follower., 303-1633-01 Remover, Roller Rocker Follower.
    GFD716822Courtesy of FORD MOTOR COMPANY
  2. Install the LH and/or RH valve covers. Refer to: Valve Cover LH . Refer to: Valve Cover RH .
