Oil Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - GT500 - Overview .
- Remove the following items:
- Refer to: Timing Chain .
- Refer to: Oil Pan .
- Remove the crankshaft sprocket.

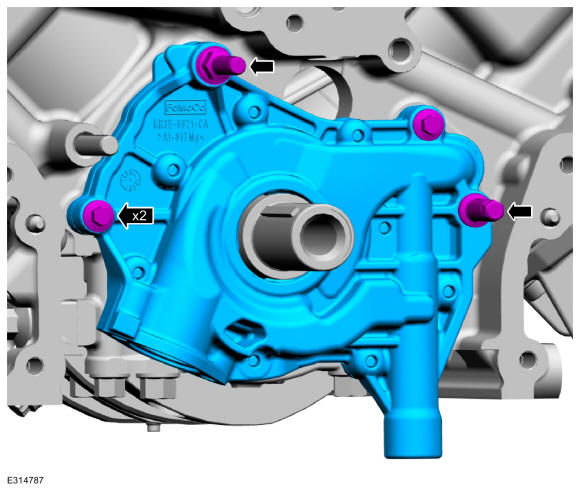

- Remove the bolts, stud bolts and the oil pump.
