Exhaust Manifold RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - GT500 - Overview .
  2. Disconnect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
  3. Remove the following items:

    1. NOTE: No disassembly of the hood is required after the hood is removed.

      Hood. Refer to: Hood .

    2. Strut tower cross brace. Refer to: Strut Tower Cross Brace - GT500 .
    3. Air cleaner outlet pipe.
    4. Air cleaner. Refer to: Air Cleaner .
    5. Supercharger belt. Refer to: Supercharger Belt .
    6. Battery tray. Refer to: Battery Tray .

  4. Remove the fasteners and the battery heat shield.
    GFD717218Courtesy of FORD MOTOR COMPANY
    • Slide the insulator up and disconnect the exhaust CMP sensor electrical connector.

    • Detach the wiring harness retainer.

    • Remove the bolt and the CMP sensor.

    GFD717219Courtesy of FORD MOTOR COMPANY
  6. Remove the LH engine mount nut.
    GFD717168Courtesy of FORD MOTOR COMPANY
  7. Remove the RH engine mount nut.
    GFD717234Courtesy of FORD MOTOR COMPANY
  8. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

    Install the special tools and raise the engine 12 mm (0.5 inch). Install Special Service Tool: 303-F070 Support Bar, Engine.Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    GFD717235Courtesy of FORD MOTOR COMPANY
  9. Remove the following items:

    1. Engine front undershield. Refer to: Engine Front Undershield - GT500 .
    2. RH catalytic converter. Refer to: Catalytic Converter RH .
    3. Transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes .

  10. Remove the nut and position the HO2S wiring harness aside.
    GFD717236Courtesy of FORD MOTOR COMPANY
    1. Remove the nut and disconnect the ground cable.
    2. Disconnect the wiring harness electrical connectors.
    3. Detach the wiring harness retainer.
    GFD717237Courtesy of FORD MOTOR COMPANY
  12. Remove the fasteners and the RH engine mount bracket.
    GFD717192Courtesy of FORD MOTOR COMPANY
  13. Remove the stud bolts and position the A/C compressor aside.
    GFD717238Courtesy of FORD MOTOR COMPANY

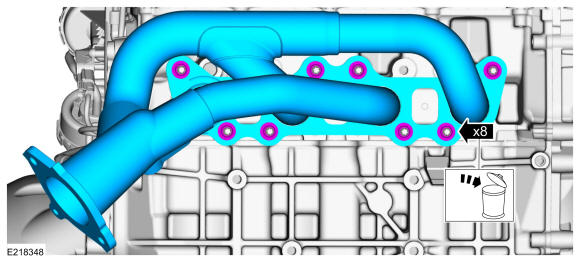

    • Remove the nuts and the RH exhaust manifold.

    • Discard the nuts.

    GFD717239Courtesy of FORD MOTOR COMPANY
  15. Remove and discard the gasket.
    GFD717194Courtesy of FORD MOTOR COMPANY

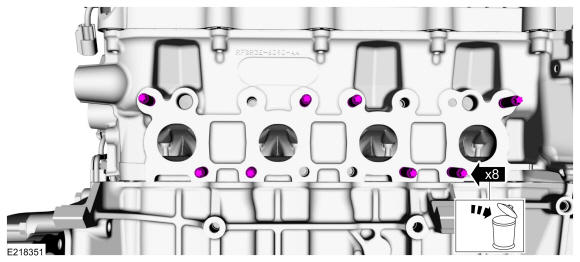

  16. Remove and discard the studs.
GFD717240Courtesy of FORD MOTOR COMPANY
